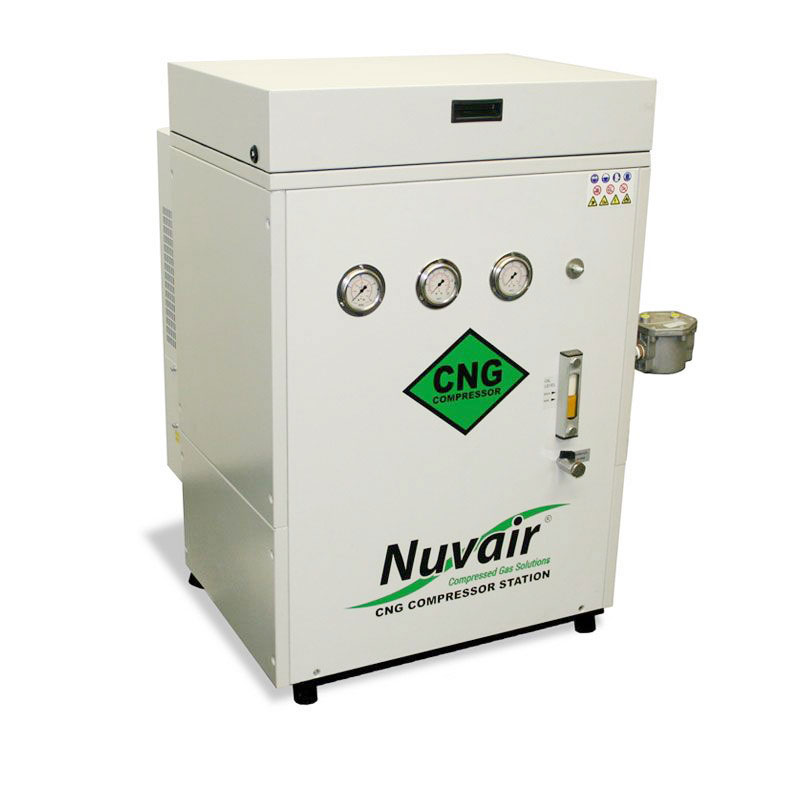

Coltri MCH10 CNG Compressor
Nuvair manufactures CNG compressors for use as compressed natural gas (CNG) fueling stations for businesses and homes. We have three sizes to choose from based on the amount of natural gas required for vehicle refueling. The MCH10 CNG delivers 6 CFM (170 L/min).
SKU
8220
Features
- Stage over pressure relief valves with flow switch for automatic shutdown
- Stage pressure gauges
- Low oil level switch
- Inlet pressure switch
- Final pressure switch
- Remote mount motor control box
- Automatic drains include 30 gal volume tank
- No pressure/temperature compensation
Options & Notes
- PLC control panel for MCH10 CNG (SKU 8215-PLC)
- Must be used with panel or fill post with auto temperature compensation if filling directly into vehicle
- Requires no more than 3 psi of gas
- MCH10 CNG only available with three-phase power
- Control panel must be mounted 15 ft from compressor
- Customer must comply with local codes and permits
Specifications
| Charging Rate | 170 L/min | 10 m3/h | 6 CFM |
|---|---|
| Filling Time | 80 L tank to 2900 psi (200 bar) in 1.5 hours |
| Working Pressure | 2900 psi (200 bar) or 3600 psi (250 bar) |
| Driven By | Three-phase electric motor (Atex certified Zone 2) |
| Power | 5.5 kW / 7.5 hp |
| Three-Phase Power Options | 208-230V / E3 / 60Hz 440-480V / E3 / 60Hz 208-230V / E3 / 50Hz 380-415V / E3 / 50Hz |
| Dimensions (L x W x H) |
26.4 x 27.6 x 41.3 in (67 x 70 x 105 cm) |
| Dry Weight | 397 lb (180 kg) |
| Noise Level | 70 dB at 3.3 ft (1 m) distance |
| Numbers of Stages and Cylinders | 3 |
| Lubricant | Nuvair Oil CE 750 |
| Frame | Powder coated steel |
| Oil/Moisture Separators | Interstage and Final |
| Filtration | Maxifilter |
| Safety Pressure Switch | 1 last stage |
| Interstage Coolers and After Coolers | Stainless steel |
