HP Storage Tanks

Our storage tanks come in the following configurations:

• 6000 psi UN/ISO/DOT GAS STORAGE TANK | 650 cu ft (18,372 L) @ 6000 psi (414 bar)
• 4500 psi UN/ISO/DOT GAS STORAGE TANK | 487 cu ft (13,780 L) @ 4500 psi (310 bar)
• 4500 psi UN/ISO AIR STORAGE TANK | 493 cu ft (13.97 m³) @ 4500 psi (310 bar)
• 4500 psi UN/ISO NITROGEN STORAGE TANK | 424 cu ft (12.0 m³) @ 4500 psi (310 bar)
• 5000 psi DOT-APPROVED AIR STORAGE TANK · Special Order Item | 531 cu ft (15.0 m³) @ 5000 psi (345 bar)
• 6000 psi UN/ISO AIR STORAGE TANK | 587 cu ft (16.61 m³) @ 6000 psi (345 bar)
• 7000 psi ASME AIR STORAGE TANK | 537 cu ft (15.2 m³) @ 7000 psi (482 bar)

Depending on your cylinder choice, these tanks can be filled and transported across most of the world's borders. Cylinders comply with ASME Section VIII, Division 1, Mandatory Appendix 22 or UN/ISO 9809 - 2:200 - Parts 1 & 2. DOT qualifications are available as noted in descriptions; optional TC stamp for Canada available.

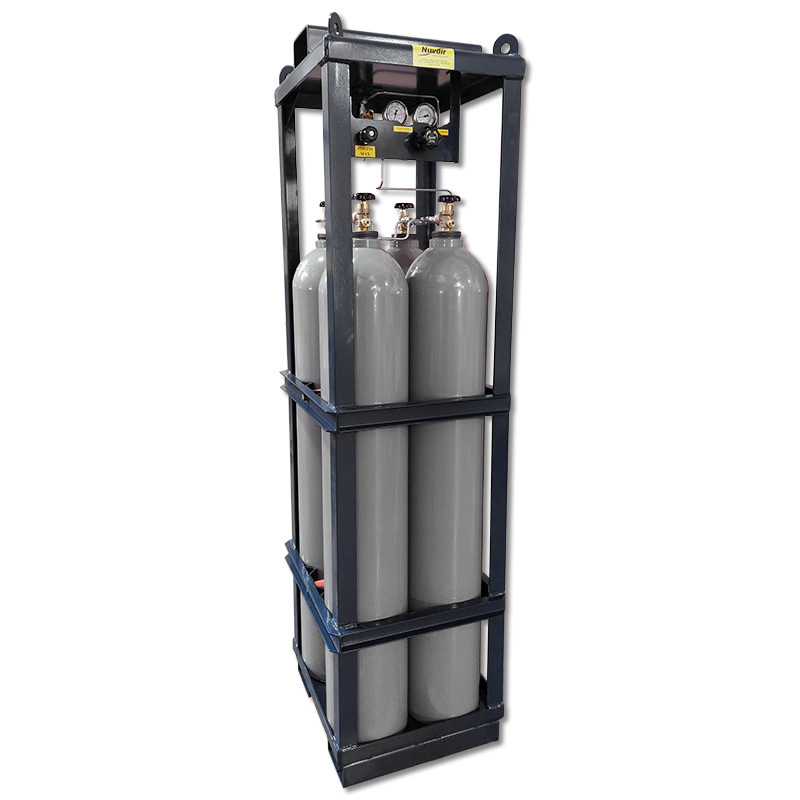

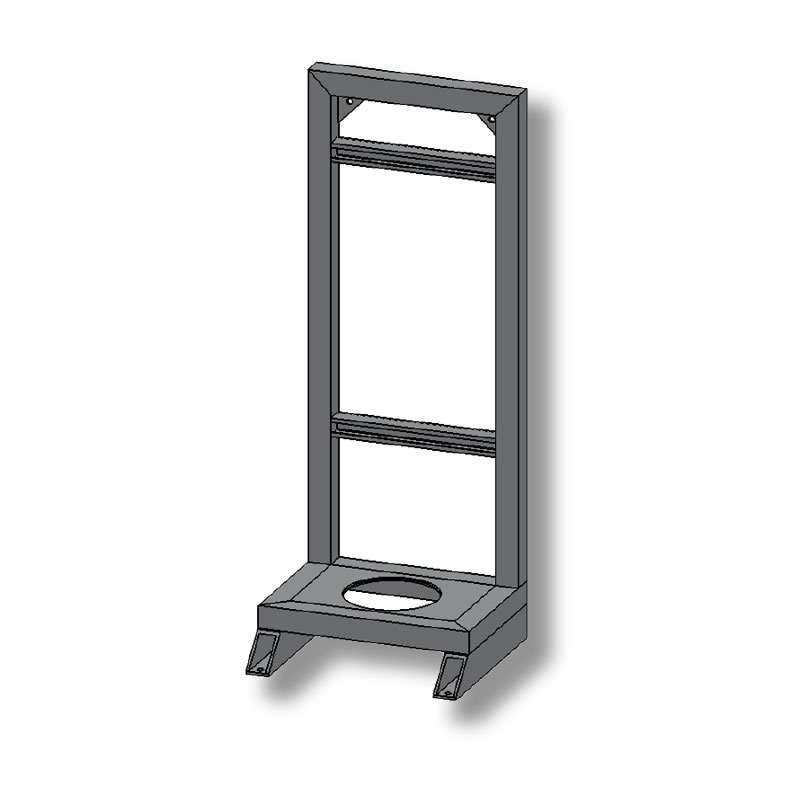

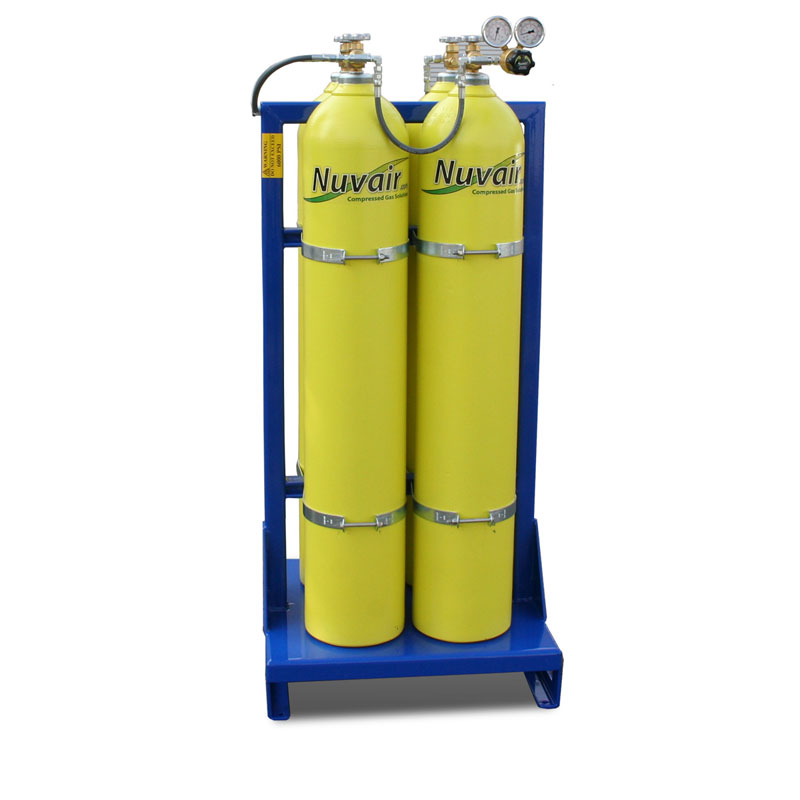

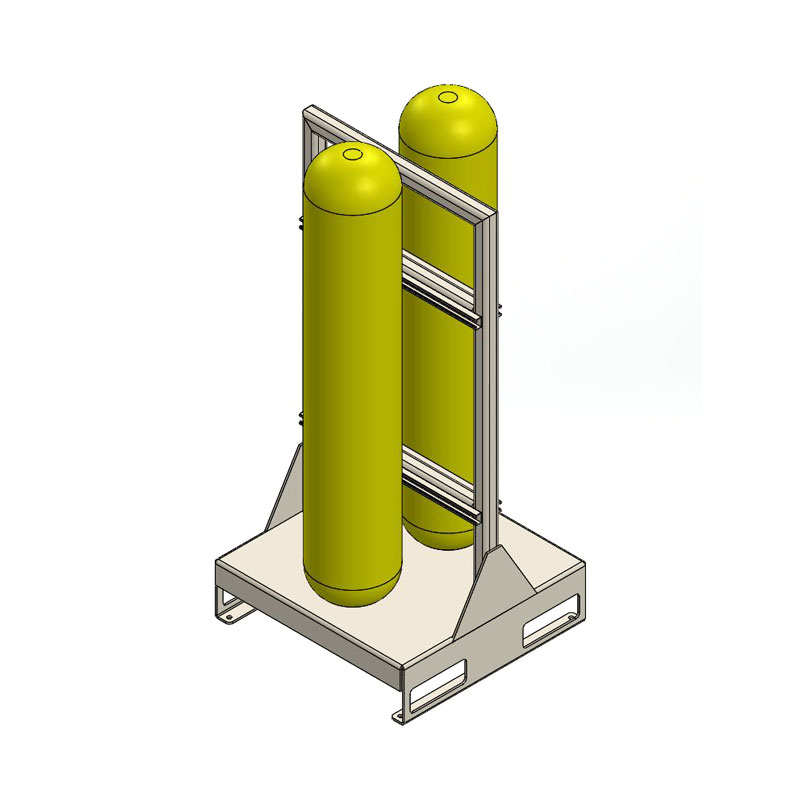

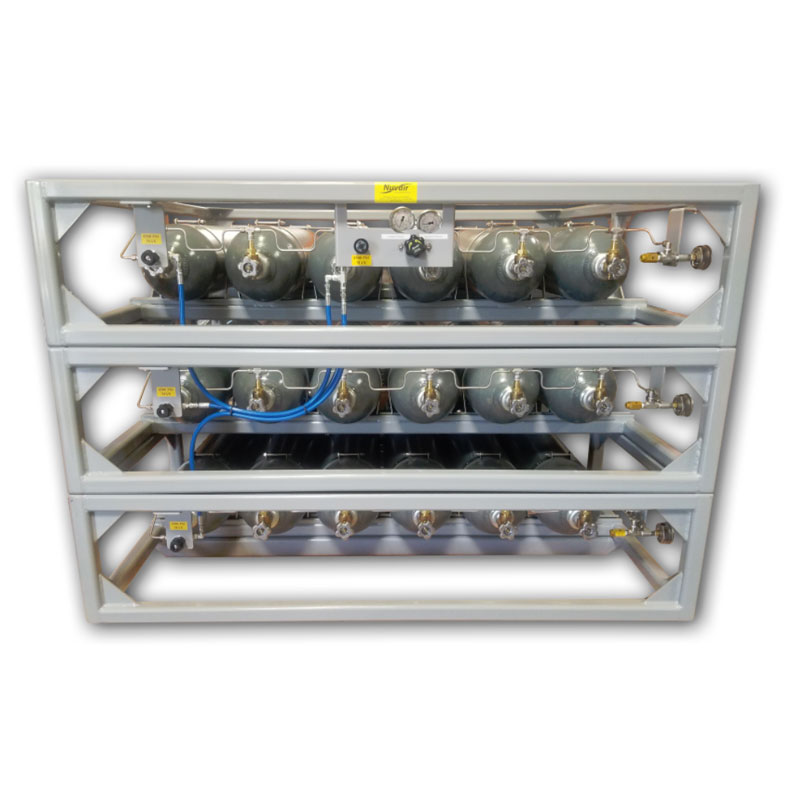

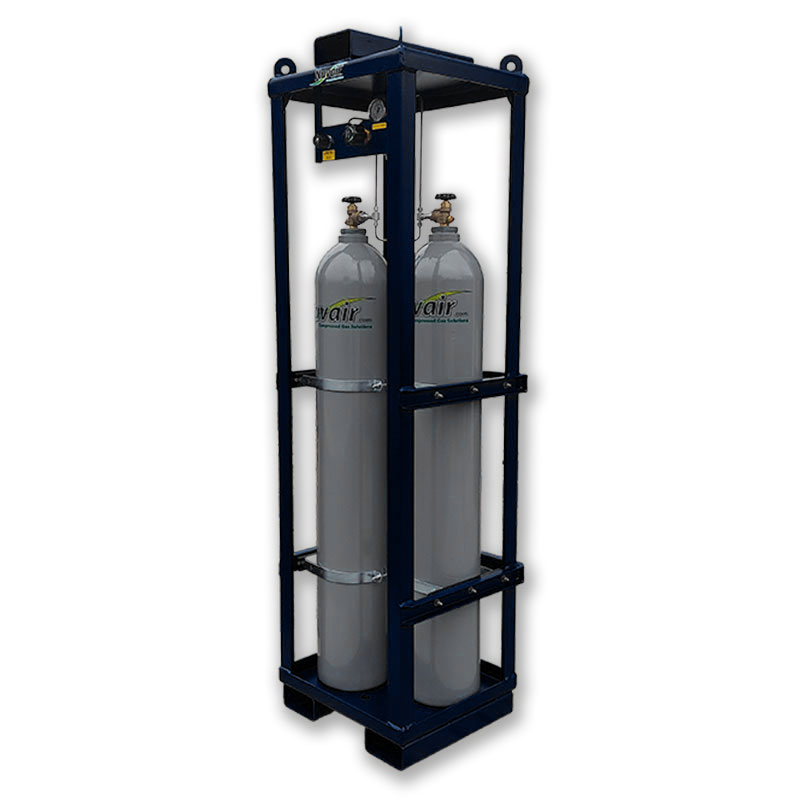

In addition to large, high-pressure cylinders listed in this section, there are our also our custom-made storage rack and tank combinations. Certified frame packages available on certain models. Nuvair also offers 1-, 2-, 3-, 4-, 6-, 8-, 9-, 12- and 16-tank rack packages.

For additional information on gas/valve/cylinder compatibility, please email the Nuvair sales team.
