Champion

Nuvair: Authorized Champion distributor

Nuvair is an authorized distributor for the entire Champion® compressor line. Champion knows and understands the application of its products in many different operating environments. Champion compressors are engineered to deliver industrial-rated dependability at an affordable price. Champion compressors are proven units, known for their reliability over decades of use. No matter the application, Champion gets the job done.

On this page you will find additional details on the following Champion reciprocating compressor lines available at Nuvair:

ADVANTAGE PROGRAM  |  PL-SERIES  |  R-SERIES
CA-SERIES  |  L-SERIES | LRS-SERIES | LV/LVR Series
CUSTOM-BUILT CHAMPION COMPRESSORS BY NUVAIR

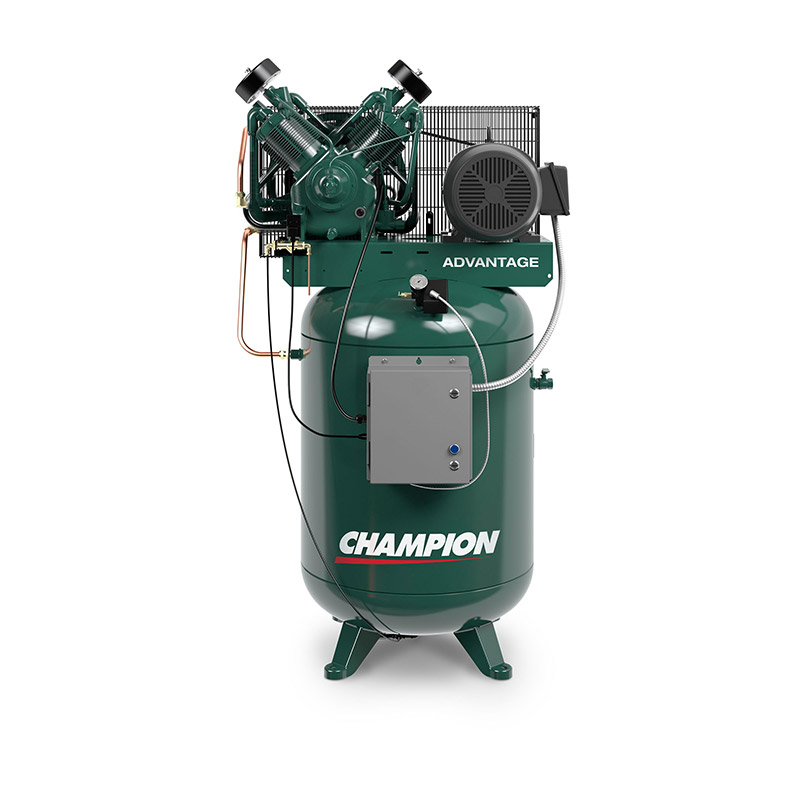

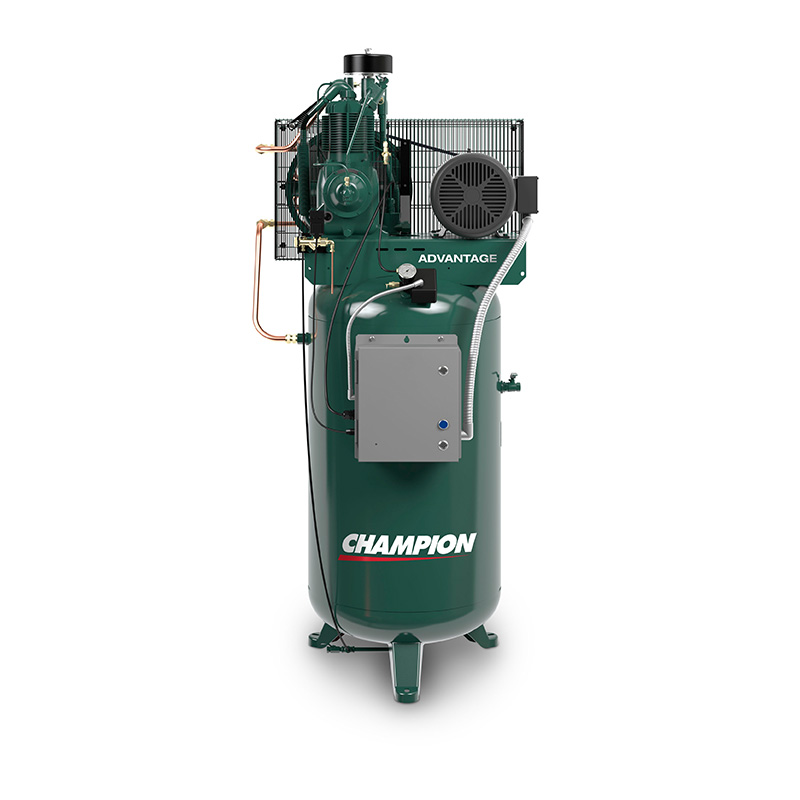

Champion Advantage Program Page

The Advantage Program features fully-equipped compressor packages.

Please Note: Variations to Advantage unit configurations are not available. For alternative options, please refer to the Champion R-Series product line or contact the Nuvair sales team for assistance with designing a custom-built Champion compressor solution.

  • 5 – 25 horsepower
  • Maximum pressure up to 175 psi
  • 16.5 – 90.1 ACFM at 175 psi
  • Two stage, splash lubricated
  • Simplex or duplex systems with 80- to 240-gallon tanks
  • Vertical or horizontal configurations
  • Packages comes standard with up to six (6) pre-installed options
  • Factory filled with ChampLub lubricant
Champion Advantage Program Compressors

  Champion PL-Series Page

Champion PL-Series pressure lubricated compressors have a time-tested, proven design. Rugged standard features, a wide selection of configurations, and quality available options make the PL-Series compressors the solution to your application. They deliver high performance, long life and tremendous value. Champion compressors are the proven choice.

  • 3 – 30 horsepower
  • Maximum pressure up to 250 psi
  • 9.7 – 202.0 ACFM at 175 psi
  • Simplex or duplex systems with 30- to 25-gallon tanks
  • Vertical and horizontal packages
  • Load-less starting (via hydraulic unloader) for lower energy costs and less wear on drive motor
  • ASME inter-stage pressure relief valve for protection
  • ODP NEMA 1760 RPM electric motor
  • 10 Micron industrial grade intake filter
  • ASME coded receiver
  • 0 – 300 psi air pressure gauge on tank
  • Available voltages
    - Single phase: 115/208-230
    - Three phase: 208/230/460/575
  • Choose from 14 available options
Champion PL-Series Compressors

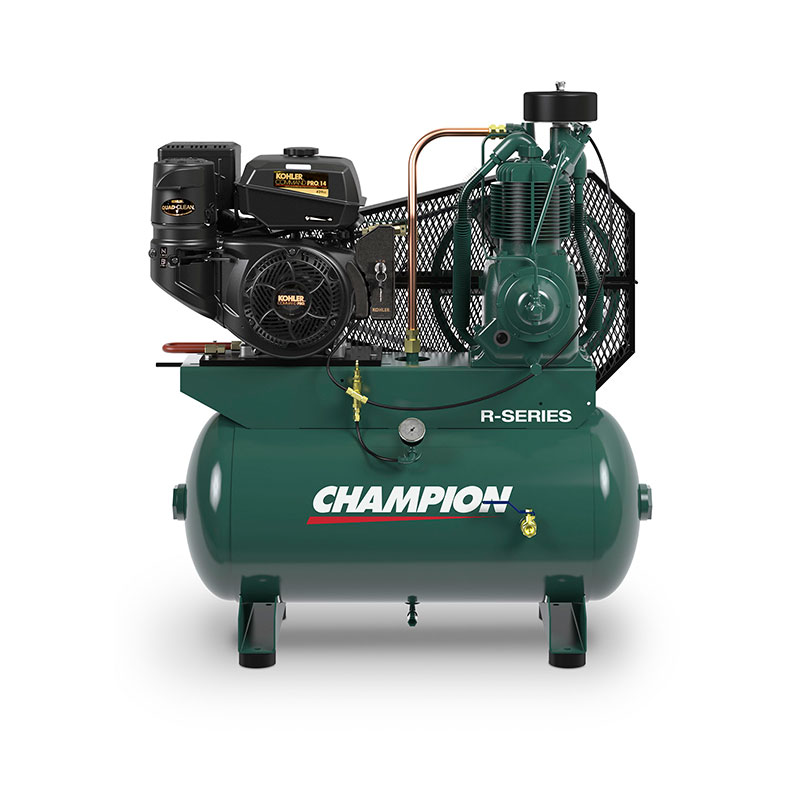

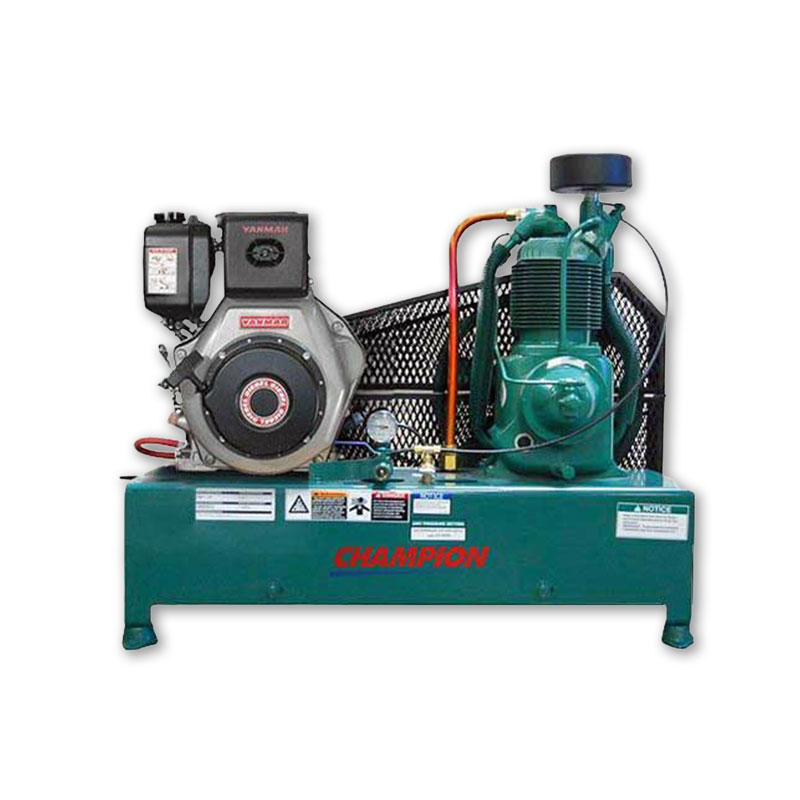

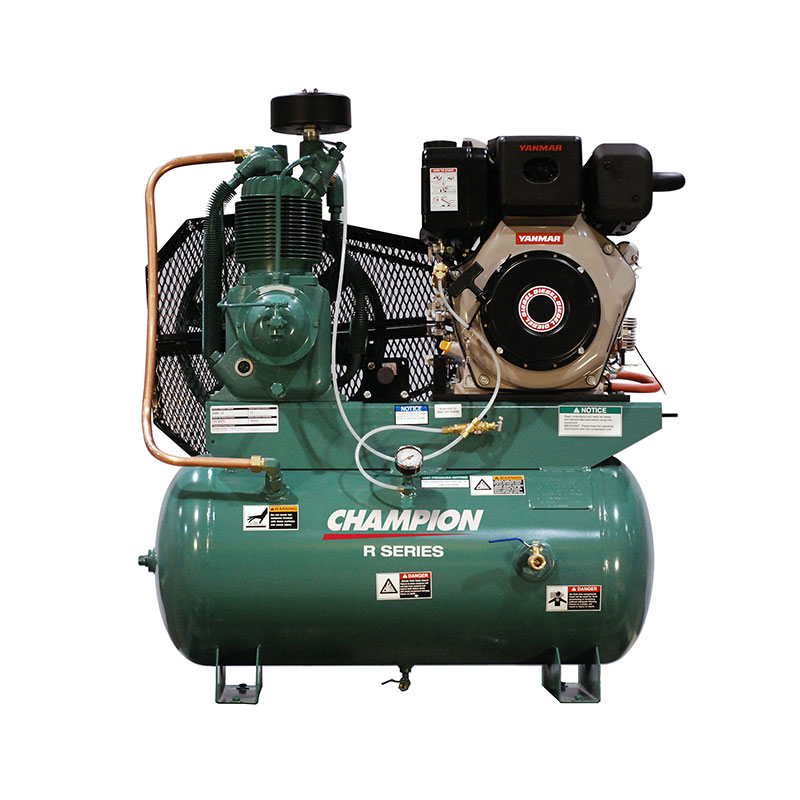

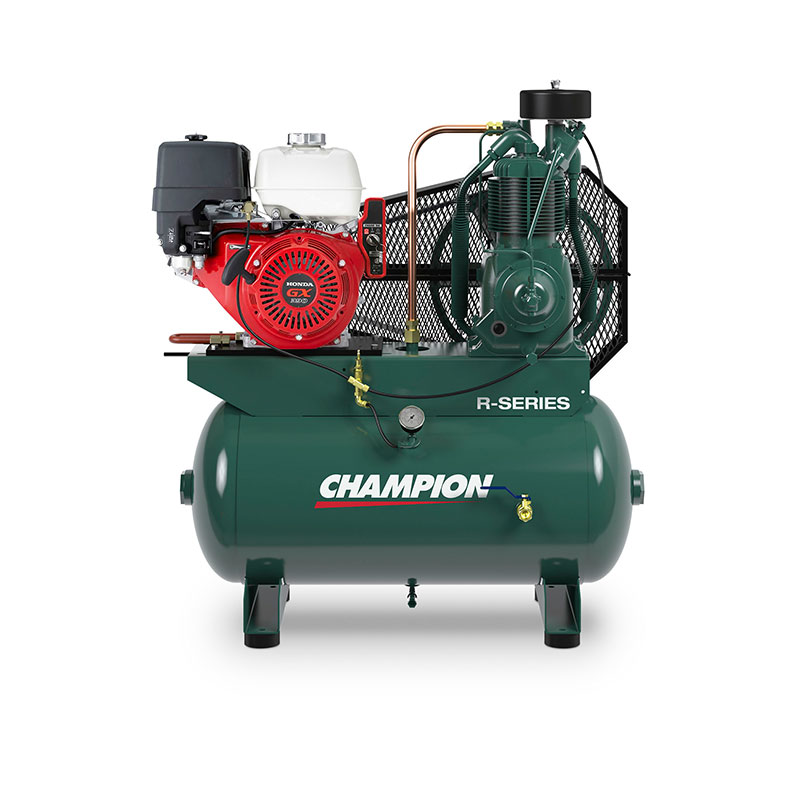

  Champion R-Series Page

Champion R-Series Compressors have a time-tested, proven design. Rugged standard features, a wide selection of configurations, and premium quality available options make the R-Series compressors the solution to your application. Delivering high performance, long life and tremendous value—Champion compressors are the proven choice!

  • 2 – 30 horsepower
  • Maximum pressure up to 175 psi
  • 4.2 – 202 ACFM at 175 psi on electric driven units
  • Simplex or duplex systems with 30- to 240-gallon tanks
  • Vertical and horizontal packages
  • Load-less starting (via centrifugal unloader) for lower energy costs and less wear on drive motor
  • ASME inter-stage pressure relief valve for protection
  • ODP NEMA 1760 RPM electric motor
  • 10 Micron industrial grade intake filter
  • ASME coded receiver
  • 0 – 300 psi air pressure gauge on tank
  • Available voltages
    - Single phase: 115/208-230
    - Three phase: 208/230/460/575
Champion R-Series Compressors

  Champion CA-Series Page

Oil-less compressors are the standard in industries such as medical, lab/research, biotechnology, pharmaceutical, food and beverage, and semi-conductor. Oil contamination is extremely detrimental to these processes. Pure air quality demands are rapidly growing with new regulations and laws regarding oil contamination throughout multiple industries and applications. Champion has designed the CA-Series scroll compressor specifically for these applications that require 100% OIL-FREE AIR, including NFPA & CSA code compliant multiplex systems.

  • 100% oil-less rotary scroll
  • 3 – 10 hp
  • 116 psi or 140 psi
  • 9.2 – 126.4 CFM
  • Industrial & Medical
  • Enclosed or Unenclosed
  • Simplex or Multiplex configurations
  • Base or Tank Mounted options
Champion CA-Series Compressors

  Champion L-Series Page

The fixed speed rotary screw L-Series is equipped with standard TEFC main motors, wye-delta starters, Pilot™ or Governor™ microprocessor controllers and quiet enclosures, an L-Series unit from Champion is the optimal solution when a feature-rich, simple-to-operate compressor is required.

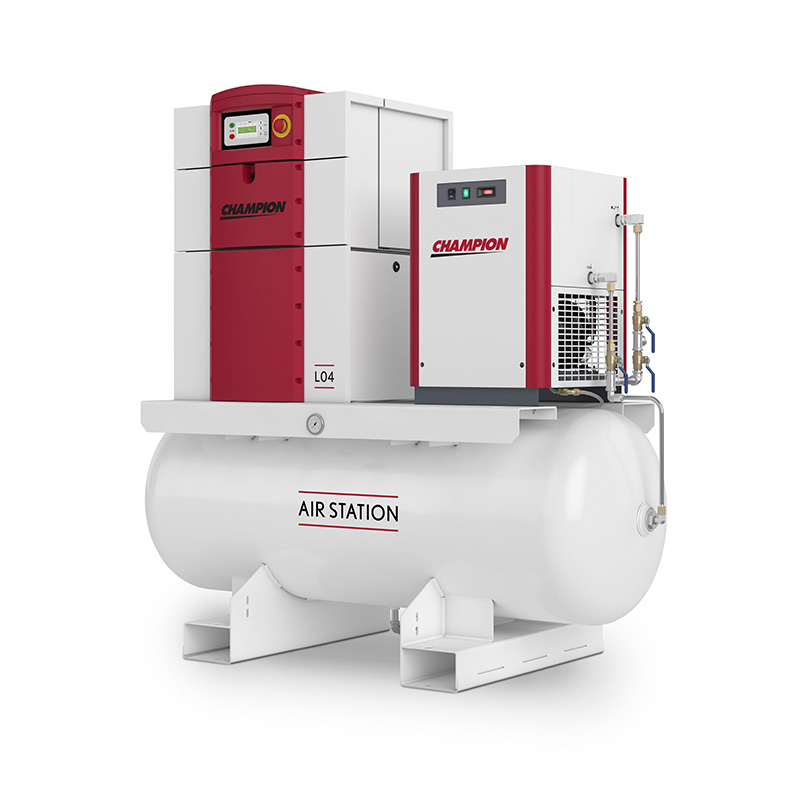

L-Series compressors are available in base mount or AirStation™ configurations. The plug-and-play AirStation™ is an L-Series compressor mounted on a horizontal receiver tank with or without a refrigerated air dryer. Featuring standard high-end and optional components such as a three-way bypass valve, stainless steel piping, integrated forklift slots and an automatic tank drain, the L-Series AirStation™ is the ideal solution for a compressed air system that requires minimal installation time and cost.

  • Oil-flooded rotary screw
  • Belt Drive (L04–L22) and Direct-Gear Drive (L23–L29)
  • 5 – 40 hp
  • 100 psi, 125 psi or 190 psi
  • 12.9 – 193.1 CFM
  • Load/no load controls
  • Low sound levels
  • Pilot™ (L07–L22) and Governor™ (L23–L29) Microprocessor Controllers
  • Base Mount or AirStation™ mount on most models with optional dryer configurations
Champion L-Series Compressors

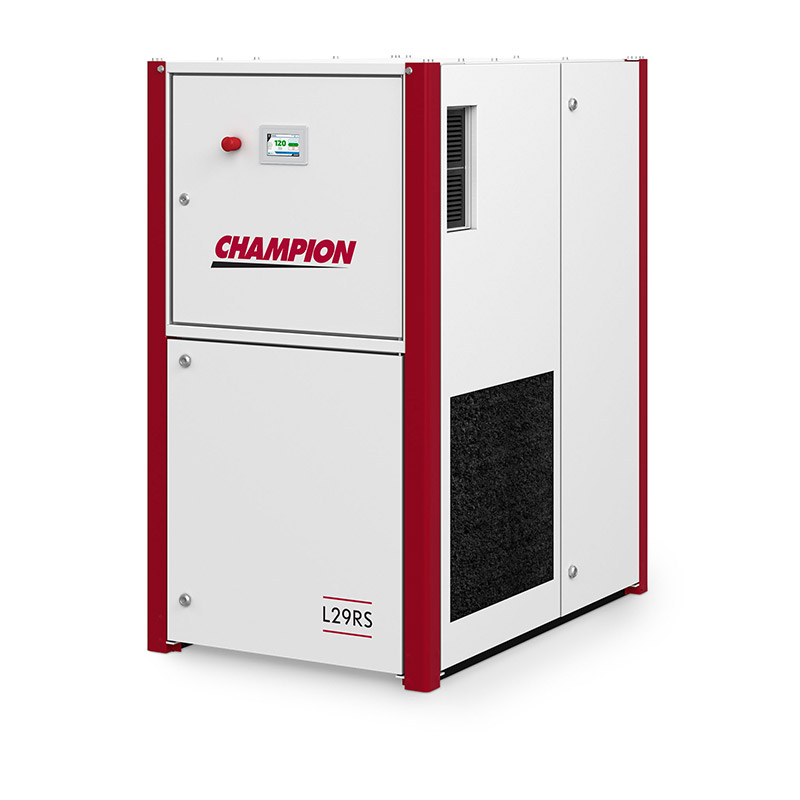

  Champion LRS-Series Page

LRS-Series compressors from Champion® feature more than just the latest compressor technology. They contain the cleanest, simplest, most intuitive machine layouts on the market. Equipped with standard TEFC main motors, robust and high performing Eaton inverter drives, Governor™ microprocessor controllers and quiet enclosures, an LRS-Series unit from Champion is the optimal solution when a feature-rich, simple-to-operate compressor is required.

Variable speed compressors from Champion can efficiently and reliably handle the varying air demand. The right variable speed compressor in the right application delivers significant energy savings and a stable air supply at constant pressure. Using a variable speed compressor can easily save 25% energy by using just the right amount of energy required to do the job and no more.

LRS-Series compressors are available in base mount or AirStation™ configurations. The plug-and-play AirStation™ configuration is an LRS-Series compressor mounted on a horizontal receiver tank with or without a refrigerated air dryer. Featuring standard high-end and optional components such as a three-way bypass valve, stainless steel piping, integrated fork lift slots and an automatic tank drain, the LRS-Series AirStation™ is the ideal solution for a compressed air system that requires minimal installation time and cost.

  • Oil-flooded rotary screw
  • 10 – 40 hp
  • Belt Drive (L07RS–L22RS) and Direct-Gear Drive (L23RS–L29RS)
  • TEFC main motor
  • Low sound levels
  • 100 psi, 125 psi or 190 psi options
  • 42.9 – 190.9 CFM
  • Pilot™ (L07RS–L22RS) and Governor™ (L23RS–L29RS) microprocessor controllers
  • Base Mount or AirStation™ mount on most models with optional dryer configurations
Champion LRS-Series Compressors

  Champion LV/LVR Series Page

The Champion® LV/LVR Series are fixed speed, direct drive rotary vane compressors designed for continuous duty. Available in airend, tripod, simplex, duplex, and hypac configurations. 2–15 hp, 100–150 psi, delivers 6.3–72.8 CFM.

These popular continuous-duty rotary vane compressors are great for applications that have outgrown a reciprocating compressor and/or have a low noise requirement. When compared to a rotary screw compressor, a rotary vane unit is less complex and often has a smaller footprint. Rotary vane compressors are typically priced between a reciprocating compressor and rotary screw compressor.

  • 2 hp to 15 hp
    - Tripod: 2 hp
    - Simplex: 2–15 hp
    - Duplex: 5–10 hp
  • CFM
    - Tripod: up to 6.3
    - Simplex: up to 36.4
    - Duplex: up to 72.8
  • Slow speed at 1760 RPM (60 Hz)
  • 100% continuous duty cycle
  • TEFC motor
  • Direct drive
  • 100 psi or 150 psi
  • Refrigerated dryer comes with hypac configuration
  • Low noise levels
Champion LV/LVR Series LVR07 hypac

  Champion Custom-Builds by Nuvair

With its worldwide presence and over 30 years of experience, Nuvair designs and builds customized air, nitrox, and multigas systems. All systems are fabricated at our California production facility. As an authorized Champion distributor, Nuvair regularly customizes Champion component parts and complete systems to meet the unique requirements of our customers.

  • Breathing Air Grade D filtration or industrial air quality
  • Air and/or nitrox (up to EANx40) capable
  • Diesel, gas, electric, or hydraulic powered systems
  • Direct surface supply of air or nitrox to multiple divers
  • 30- to 240-gallon storage tank/s
  • Vertical and horizontal packages
  • Specialized framing solutions for land or marine use
Nuvair EK76-R15 surface supply nitrox system with Champion R15 pump
