Custom 1/2" 2320 psi Braided Hose & Hose Ends
From $4.62
To $35.40
At Nuvair, we custom fabricate breathing air hose and hose ends. We cut the length of our 1/2" 2320 psi (160 bar) working pressure braided hose to your specification and install hose ends that you select. The cost of installing hose ends is included in the purchase price. The SN-08 hose is suitable for use with mineral and vegetable oils, aqueous emulsion, water, air, and inert gasses..
SN-08 is a 1/2" (12 DN) 1-wire braided hose that meets and exceeds the performance requirements of DIN EN 853 1SN and SAE 100R1 S. This hose is designed for low to medium pressure hydraulic applications. Rated for -40°F to 212°F (-40°C to 100°C) with a working pressure of 2320 psi (160 bar).
How to Order Your Custom Hose & Installed Hose Ends
- Click the black CUSTOMIZE AND ADD TO CART button above.
- Select the length of your SN-08 hose. Enter the length (in feet) in the "Qty" (quantity) window. For instance, if you need a 10-foot-long hose, enter "10" in the "Qty" box. Metric conversion: 1 foot = 30.48 cm.
- Select the first hose end in the "Hose End #1" dropdown box. Only one hose end can be selected. You can also choose to have no hose end installed.
- Select the second hose end in the "Hose End #2" dropdown box. Only one hose end can be selected. You can also choose to have no hose end installed.
- Click "Add to Cart" Button. The total price will display in the Shopping Cart.
- If the hose order needs to be edited, click "Edit" (pencil) icon in the Shopping Cart.
- You can order multiple quantities of the same hose length and hose ends or revisit this page to order a new hose length/hose end combination.
Hose Specifications
SN-08 is a NON-Skive, MSHA flame resistant approved hose with a 4:1 safety factor that is capable of meeting the demands of todays rugged environments. It is suitable for use with mineral and vegetable oils, aqueous emulsion, water, air, and inert gasses. An MSHA flame resistant approved black cover with a black embossed layline is standard.
To order hose without hose ends, see SKU SN-08 (1/2" 2320 psi Braided Wire Hose).
| SKU | SN-08 |
| Nominal | 1/2" (12 DN) |
| I.D. |
0.51" (13.0 mm) |
| O.D. | 0.79" (20.0 mm) |
| Bend Radius | 7.0" (180 mm) |
| Weight | 0.24 lb/ft (0.36 kg/m) |
| Tube | Oil resistant black synthetic rubber |
| Reinforcement | 1-wire high tensile steel braid |
| Cover | Abrasion, ozone, and weather resistant rubber MSHA flame resistance approval Black with a black molded-embossed layline |
| Working Pressure | 2320 psi (160 bar) |
| Temperature |
–40°F to +212°F (–40°C to +100°C) +248°F (+120°C) intermittent |
| Burst Pressure | 9282 psi (640 bar) |

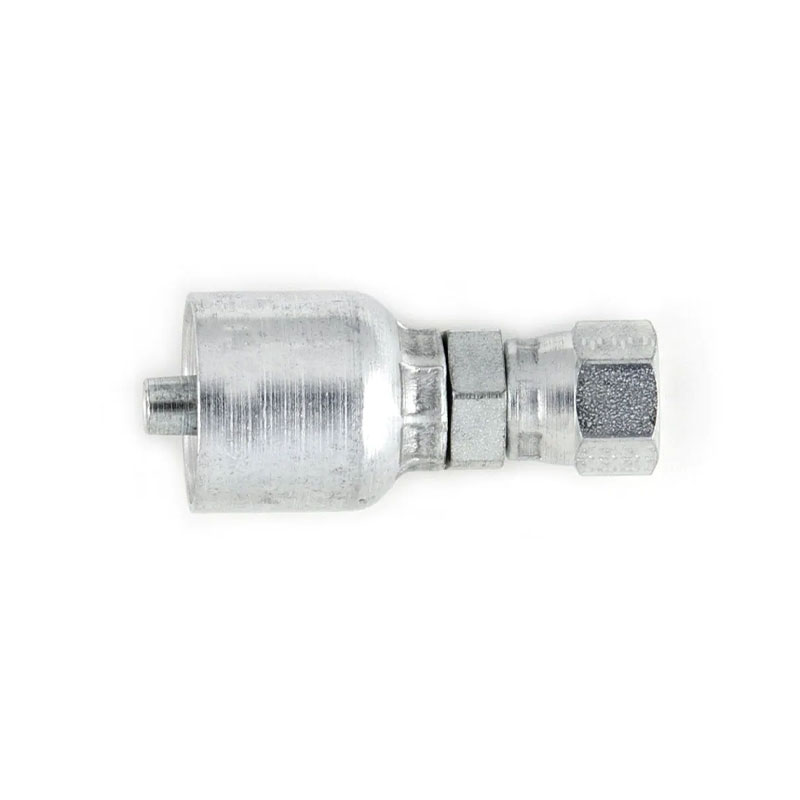

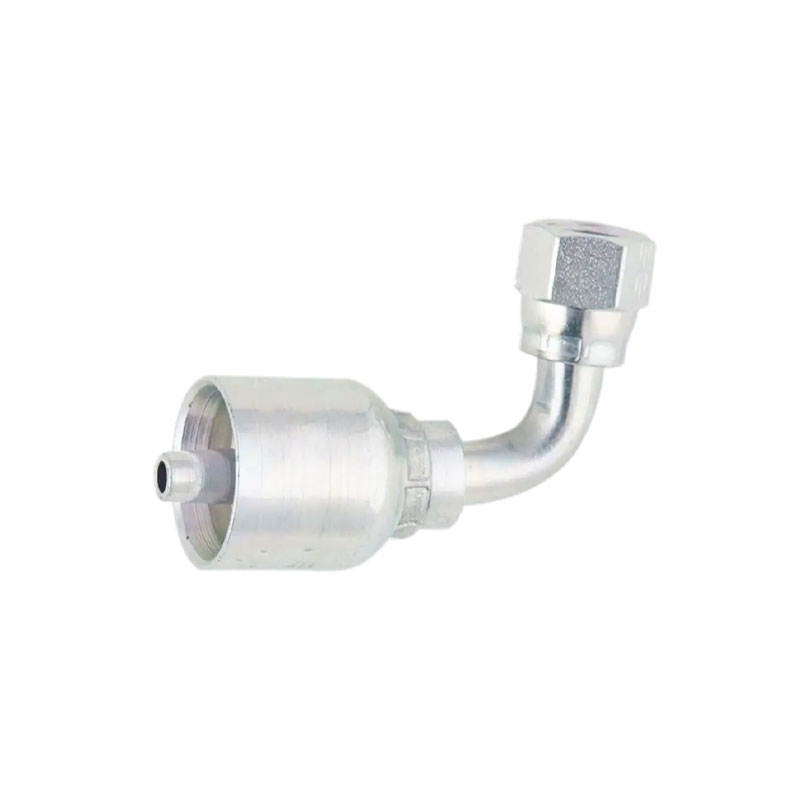

Hose End Choices
For a full listing of hose end choices, see RELATED PRODUCTS (below).
 |
SKU NO-END Select this option if you do not want a hose end installed on Hose End #1 and/or Hose End #2. If chosen, the selected hose end/s will ship bare. |
PLEASE NOTE: Custom cut hose and hose ends are special order items and are not returnable and are non-refundable. For additional information see our RETURNS POLICY. For assistance with ordering custom hose and hose ends, or if your application requires "fractional foot" ordering (hose lengths that are not in one-foot increments, i.e. 14-foot, 7-inch hose length), please contact the Nuvair sales team.
