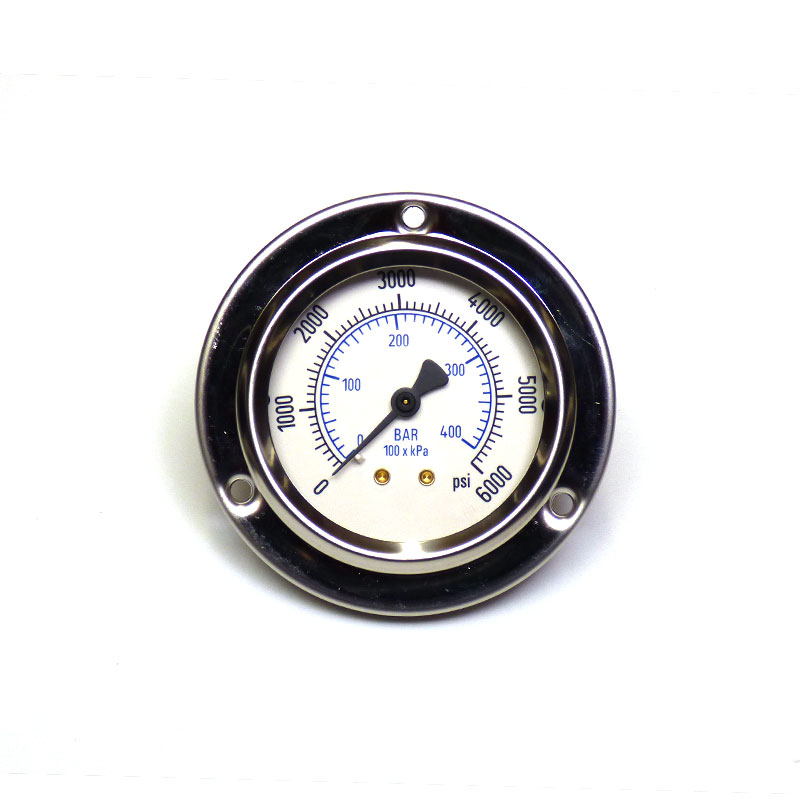

Dry Pressure Gauge for O2 Service: 6000 psi, 2.5 in Dial, Stainless Front Flanger Mount

$114.60

6000 psi (414 bar) stainless steel pressure gauge with dampened movement. Cleaned for oxygen service. 2.5 in dry dial. Wetted parts: Brass tube and socket. Front flanger mount 1/4 in NPT.

SKU
SCF63-1-6000-D-DBR-O

Specifications

Configuration Stainless case front flanger mount
Dampened movement
Oxygen (O2) service ready
Gauge Size 2.5 in (63mm)
Wetted Parts Brass tube and socket
Connection 1/4 NPT
Range 0–6000 psi
Fill Dry no fill
Dial Dual scale (psi and bar)
Accuracy 2%-1%-2%
Design ANSI/ASME B40.1
Operating Temperture -40°F to 150°F
Temperature Error Additional error when temperature changes from reference temperature of 68°F (20°C)
±0.4% for every 18°F (10°C) rising or falling as a percentage of span.
Weather Protection Weather tight (NEMA 4X / IP 65)
Replaces SKU 25.410.6000-FF O2
