Walker Coalescing Filter Element · 0.3 ppm · 1 micron

$191.00

The Walker E30612 series of coalescing and particulate filter elements fit Walker's Alpha filter housing models A30070, A30085, and A30105. The Grade X1 element removes 1 micron particles with a maximum oil carryover of 0.3 ppm. Complies with ISO 8573-1: 2010 (maximum particle size class and maximum oil content).

SKU
E30612X1
  • Buy 6 for $162.35 each and save 15%
  • Buy 10 for $152.80 each and save 20%

Introducing the Alpha, Walker Filtration’s latest range of market leading compressed air and gas filters. With enhanced housing features and a step change in element performance, the Alpha delivers a high quality filtration solution you can trust.

Offered in a range of 18 models with connection sizes ranging from 1/8” to 3”, the Alpha Series has been tested to provide a saturated differential pressure of <1.8 psi (125 mbar) across X1 and XA grades—proving to be our most advanced filter to date.

With class leading performance and exceptional results in oil aerosol and particle retention, Alpha Compressed Air Filters deliver significantly reduced pressure loss and optimum filtration efficiencies—to ensure continually low operational costs.

Technical Specifications

Grade X5 X1 XA AC
Particle removal 5 micron 1 micron 0.01 micron 0.01 micron
Maximum particle size class** 4 3 1 1
Maximum oil content** 4 3 1 1
Maximum oil carryover at 68°F (20°C) 5 ppm 5 mg/m³ 0.3 ppm 0.3 mg/m³ 0.01 ppm 0.01 mg/m³ 0.003 ppm 0.003 mg/m³
Pressure loss - clean & dry 0.6 psi 40 mbar 0.8 psi 55 mbar 1.2 psi 85 mbar 1.7 psi 115 mbar
Pressure loss - saturated 1.1 psi 75 mbar 1.8 psi 125 mbar 1.8 psi 125 mbar N/A N/A
Pressure loss - element change 12 months 8000 hours 8000 hours 12 months 8000 hours 12 months at least every 6 months
Maximum temperature - automatic drain 176°F 80°C 176°F 80°C 176°F 80°C 122°F*** 50°C***
Maximum working pressure - automatic drain 232 psi 16 bar 232 psi 16 bar 232 psi 16 bar 232 psi 16 bar
Maximum temperature - manual drain 248°F 120°C 248°F 120°C 248°F 120°C 122°F*** 50°C***
Maximum working pressure - manual drain 300 psi 20.7 bar 300 psi 20.7 bar 300 psi 20.7 bar 300 psi 20.7 bar
Element cap color
Green Red Blue Black

** to ISO 8573-1: 2010
*** Maximum recommended operating temperature 77ºF (25ºC)

Pressure correction factors For maximum flow rate, multiply model flow rate by the correction factor corresponding to the minimum operating pressure
Operating pressure psi (bar) 58 (4) 72 (5) 87 (6) 100 (7) 115 (8) 145 (10) 174 (12) 203 (14) 232 (16) 300 (20.7)
100 psi - correction factor 0.76 0.84 0.92 1.00 1.07 1.19 1.31 1.41 1.51 1.73

Technical Notes

  1. Direction of air flow is inside to out through the filter element.

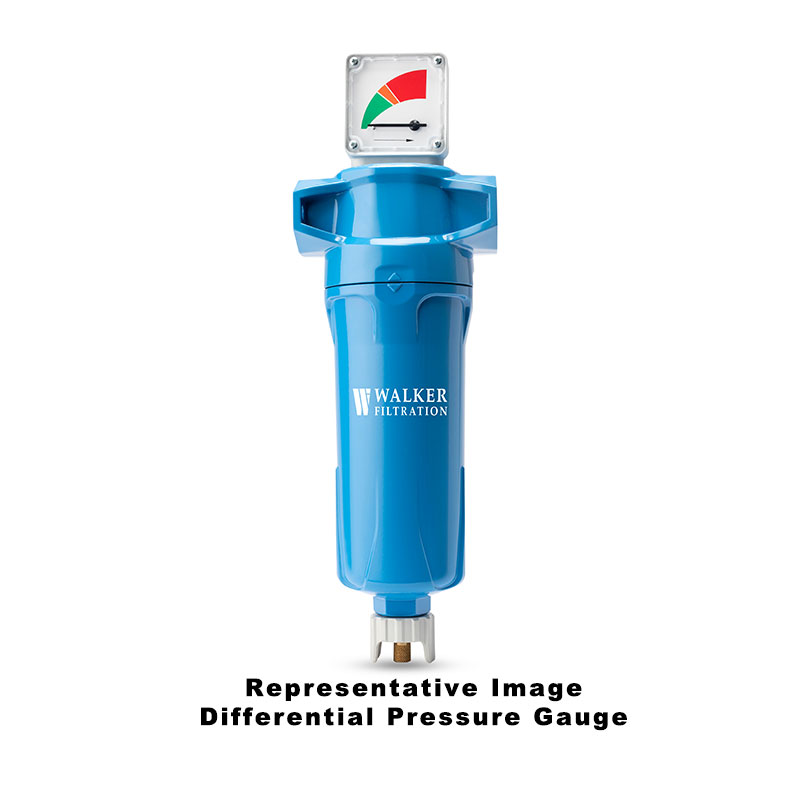

  2. Pop up indicators (65DPUG3) are fitted to models A30025 to A30050 as standard. Differential pressure indicators (65DPIG) are fitted to models A30070 to A31500 as standard. Activated Carbon (AC) grade filters do not include DP equipment. Volt free contact options are available upon request - see price guide.
  3. Coalescing Filters are fitted as standard with normally open float operated automatic drain valves, ADVS16 on models A30006 to A30050 and ADVSE16 on models A30070 to A31500, and manual drain valves on Activated Carbon Filters. Standard filters can operate at 232 psig (16 barg ) at 176°F (80°C). Normally closed operated automatic drain valves (ADVS16C) are available for low range flow applications (2.5 SCFM, 4.2 Nm³/hr or lower). 300 psi (20.7 bar) range at 248°F (120°C) available when supplied with a manual drain valve (MDV25 on models A30006 to A30050 and MDVE25 on models A30070 to A31500).
  4. Activated Carbon Filters must not operate in oil saturated conditions and will not remove certain types of gases including carbon monoxide (CO) and carbon dioxide (CO2).
  5. Alpha Filters are manufactured from cast aluminum alloy and are PED 2014/68/EU compliant for group 2 gases.
  6. Standard threaded connections are NPT to ANSI/ASME B1.20.1. RP (BSP Parallel) to ISO 7-1 and RC (BSP Taper) to ISO 7-1 are also available upon request.
  7. Filters are suitable for use with mineral and synthetic oils plus, oil-free compressed air applications.



Walker Filtration Genuine Parts

Nuvair is an Authorized Walker Filtration Distributor
Nuvair sells only genuine parts and equipment manufactured by Walker Filtration. ISO 9001 accredited, Walker Filtration designs, develops, and manufactures high quality compressed air filtration, vacuum air/oil separation, and drying solutions for a wide range of industrial and medical applications on a global scale.

Some Walker Filtration parts are not available for purchase online. To ensure this genuine Walker Filtration part fits your compressor model/version, please contact the Nuvair sales team for ordering assistance.
