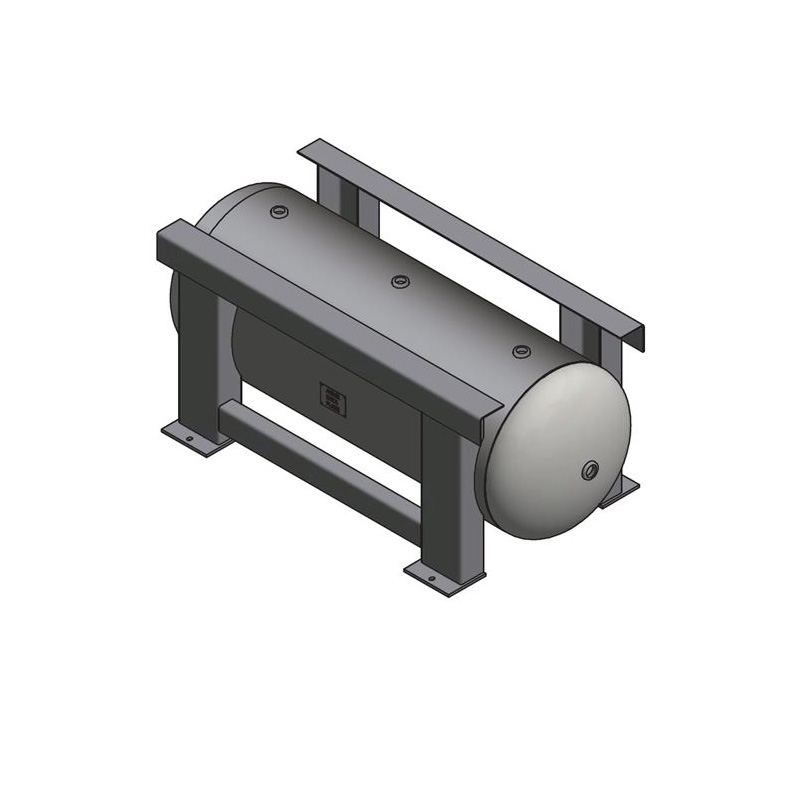

120 Gallon, 200 psi Grasshopper Volume Tank
This ~120-gallon grasshopper-style volume tank (air receiver) is ASME rated. Measures 24 in O.D. x 67 in L. Special interior and exterior coatings can be quoted to meet your specifications. Maximum working pressure: 200 psi.
SKU
A10126
Specifications
This low-pressure air receiver is built in accordance with the ASME Section VIII Division I code latest addition. Quotes for special interior and exterior coating options available.
| SKU | A10126 |
|---|---|
| Volume | ~120 gal |
| Cubic Feet | ~19.2 |
| Material | Carbon Steel |
| Exterior Finish | Standard Shop Primer |
| Interior Finish | As Welded, Unifinished |
| MAWP | 200 psi @ 450°F |
| MDMT | -20°F @ 200 psi |
| O.D. | 24 in |
| Length | 67 in |
| Shipping Weight | 492 lb |
| Additional Equipment | Tank only |
| Schematic Nozzles | |
| N1 | 1/4 NPT |
| N2 | 3/4 NPT |
| N3 | 1-1/2 NPT |
| N4 | 2 NPT |
