Bamax BX60 Gas Modular Stack + 30 gal Tank
Offering flexibility in configuration, the LP-BX60-G-EL-MS framed compressor and tank can be stacked top of each other or positioned independently. Each frame has ergonomic lifting handles. The Bamax 2-stage BX60 low-pressure compressor is powered by a pullstart Honda GX270 8.5 hp engine and delivers 23 CFM @ 145 psi (651 L/min @ 10 bar), making it suitable for medium duty applications. The 30-gallon ASME 200 psi framed tank includes tank pressure gauge, pressure relief valve, drain manifold, and input check valve.
Features
- Two stage, two cylinder compressor
- Nuvair 455 synthetic oil
- Digital hour meter
- 25 CFM air cooler
- Oil sight gauge
- Oil drain hose
Recommended Options

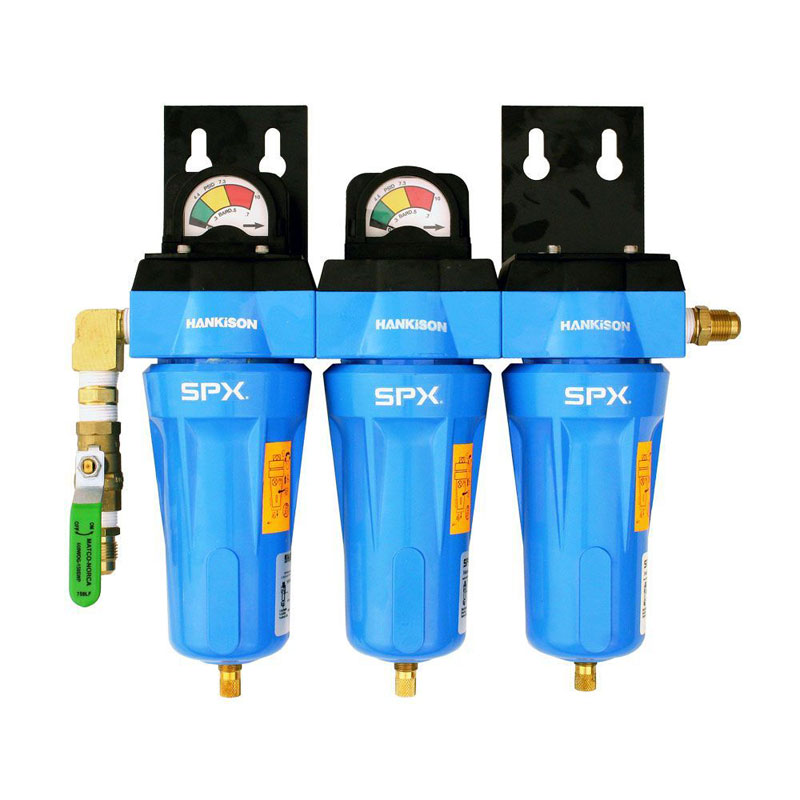

- 3-Stage Breathing Air Filtration Pack¹ (SKU 6063.1, as pictured)
- Carbon monoxide (CO) monitor, low pressure, high temperature alarm¹ (SKU 9621F)
- Air Test Kit (SKU 1XTEST)
- Dive Hose and Hose Ends (SKU K313AY-06-CUSTOM)
- Remote Air Intake² (SKU NUVRAI-BX, as pictured)
- Load Genie® required for filtration or monitoring options
Specifications
| SKU | LP-BX60-G (Mini Tech) | 7081 (Framed Volume Tank) |
|---|---|---|
| Cylinders / Stages | 2 / 2 | |
| Air Delivery | 23 CFM @ 145 psi (651 L/min @ 10 bar) | |
| Max Operating Pressure | 165 psi (11 bar) | 200 psi (14 bar) |
| Engine | 8.5 hp Honda GX270³ | |
| Air Tank Capacity | 30-gal horizontal ASME | |
| Compressor Type | Splash lubricated 2-stage | |
| Frame | Marine grade 6061 aluminum | Marine grade 6061 aluminum |
| Compressor Plate | Stainless steel | |
| Combined Unit Dimensions (L x W x H) | 48 × 32 × 61" (122 x 81 x 155 cm) | |
| Combined Unit Weight | 420 lb (191 kg) | |
Nuvair is an Authorized Bamax Distributor
Nuvair sells only genuine parts and equipment manufactured by Bamax . Do not be fooled by cheap aftermarket copies of original Bamax equipment. Items labeled “replacement,” “OEM equivalent,” “compatible,” or “alternative” are not manufactured by Bamax srl.
Some Bamax parts are not available for purchase online. To ensure this genuine Bamax part fits your compressor model/version, please contact the Nuvair sales team for ordering assistance.
Notes
¹ OSHA Standards for Respiratory Protection · 1910.134(i)(7) CFR: "For oil-lubricated compressors, the employer shall use a high-temperature or carbon monoxide alarm, or both, to monitor carbon monoxide levels. If only high-temperature alarms are used, the air supply shall be monitored at intervals sufficient to prevent carbon monoxide in the breathing air from exceeding 10 ppm." [≤10 pm carbon monoxide meets CGA Grade D breathing air requirements.]
² Remote air intake required to meet OSHA standards for breathing air.
³ Gasoline-powered breathing air compressors manufactured by Nuvair are now equipped with Predator® engines.
