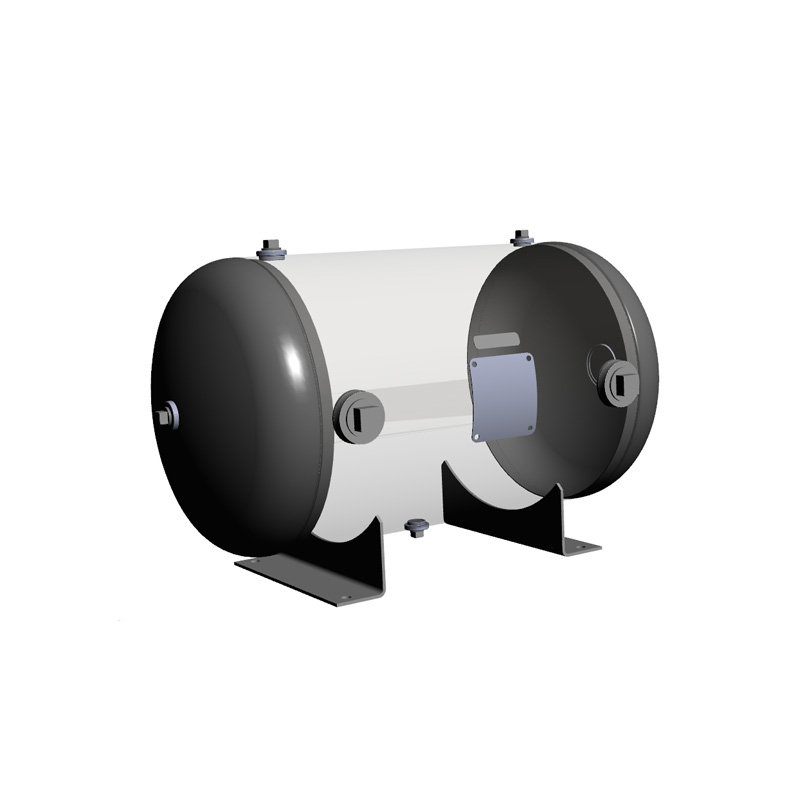

23.8 Gallon, 200 psi Horizontal Volume Tank

This 23.8-gallon horizontal volume tank is ASME rated. Measures 16 in O.D. x 31 in L. Foot brackets: 2 in H. Special interior and exterior coatings can be quoted to meet your specifications. Maximum working pressure: 200 psi.

SKU

304944

Details

Specifications

This low-pressure air receiver is built in accordance with the ASME Section VIII Division I code latest addition. Vessels are "U" stamped and registered with National Board. Quotes for special interior and exterior coating options available.

SKU	304944
Volume	23.8 gal
Cubic Feet	3.2
Material	Carbon Steel
Exterior Finish	Standard Shop Primer
Interior Finish	As Welded, Unfinished
Working Pressure (psi)	200
Operating Temperature	≤650°F
O.D.	16 in
Length	31 in
Weight	72 lb
Square Feet	11.6
Additional Equipment	Tank Only
