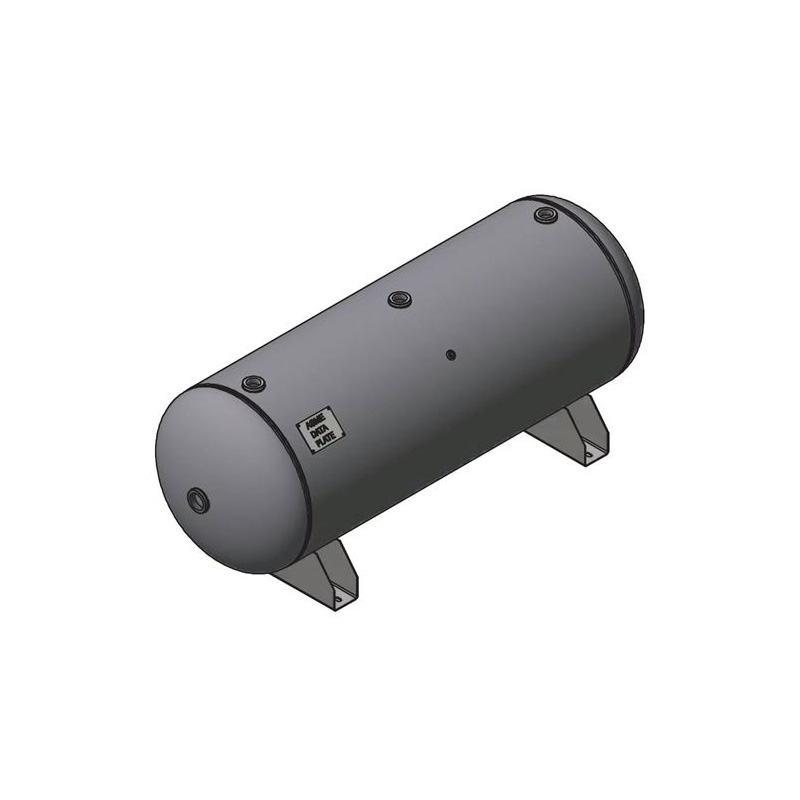

60 Gallon, 200 psi Horizontal Volume Tank
This 60-gallon horizontal volume tank is ASME rated. Measures 20 in O.D. x 48 in L. Foot brackets: 3-7/32 in H. Special interior and exterior coatings can be quoted to meet your specifications. Maximum working pressure: 200 psi.
SKU
A10029
Specifications
This low-pressure air receiver is built in accordance with the ASME Section VIII Division I code latest addition. Quotes for special interior and exterior coating options available.
| SKU | A10029 |
|---|---|
| Volume | 60 gal |
| Cubic Feet | 8 |
| Material | Carbon Steel |
| Exterior Finish | Standard Shop Primer |
| Interior Finish | As Welded, Unifinished |
| Working Pressure (psi) | 200 |
| Operating Temperature | ≤400°F |
| O.D. | 20 in |
| Length | 48 in |
| Weight | 162 lb |
| Additional Equipment | Tank only |
