Nardi Atlantic P 20/1 · 1.5 hp 110V/E1/60Hz · 0.8 CFM · 4700 psi

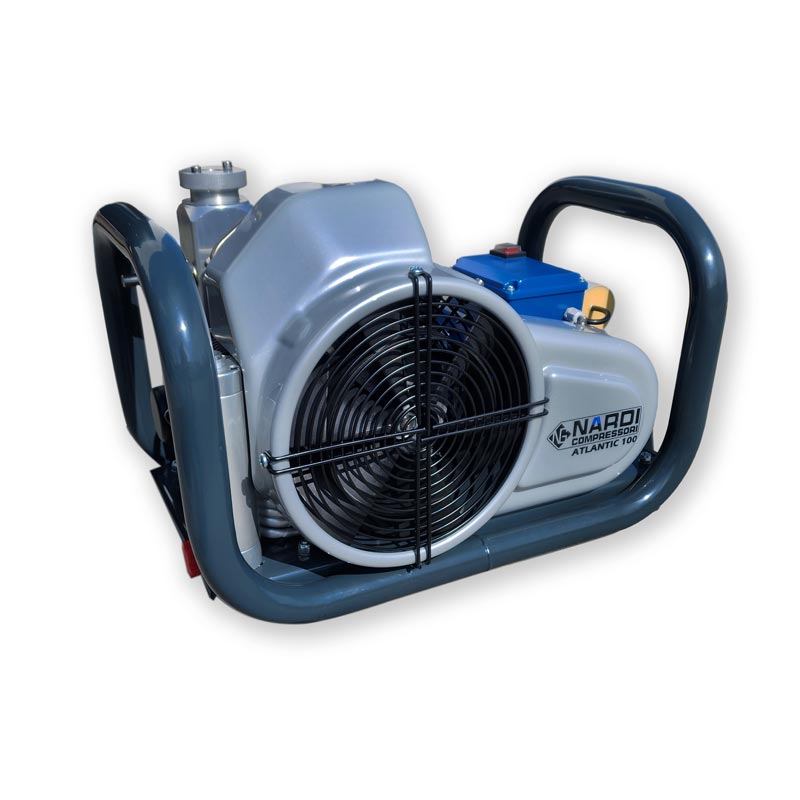

The NARDI ATLANTIC P 20/1 is a compact, standalone high-pressure (4700 psi/330 bar) compressor made for filling scuba cylinders on-the-go. Powered by a 110-volt, 1.5 hp (1.1 kW), 9A single-phase motor, the ATLANTIC P delivers CGA Grade E quality air at 0.8 CFM FAD (23 L/min) and can fill an 80 cu ft scuba tank in about 100 minutes. Fill valve and hose not included. Weighs under 100 pounds (<42 kg).
The lightweight and portable NARDI ATLANTIC series of breathing air compressors are manufactured in conformity with international air quality standards. Small in size and great on performance, the ATLANTIC is the most compact model of breathing air compressors NARDI manufactures. It is easy to transport and suitable for both private and professional use. The electric model is available in a 23 L/min and 60 L/min single-phase (E1) version and a 100 L/min version in both in single- and three-phase (E3). Despite its small size, the ATLANTIC is a powerful compressor, built with top quality materials to guarantee performance and reliability throughout its service life.
Optional accessories can be installed to your NARDI compressor by the Nuvair production team. All NARDI compressors are bench tested by Nuvair prior to shipping.
Specifications
| Model | Power | Charging Rate | Fill Time¹ | Stages | Pressure | Fill Connection | Motor | RPM | Noise | Weight | Size (L×W×H) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Atlantic P 20/1 |
110V/E1 60Hz · 9A |
0.8 CFM FAD 23 L/min (0.2 m³/h) |
~100 min | 4 | 4700 psi 330 bar |
(PA112-210) Handwheel valve INT 200 (Yoke) + 1m Hose | 1.5 hp 1.1 kW |
2100 | 79 dB | 93 lb 42 kg |
22.8×16.1×16.1" 58×41×41 cm |
¹Based on 80 cu ft cylinder from 0 to 3000 psi.
Features
- Pressure valve standard on every model
- Coated aluminum frame
- Interstage condensate separator designed to decrease condensation between stages and reduce temperature
- Perfectly balanced crankshaft
- High quality materials resistant to thermal or dynamic stresses
- Air conveyor designed for a high heat exchange efficiency
- Steel valves for longer life and greater performance
- Properly sized filter cartridge for excellent air quality
- Low noise and vibration
- Advanced electronics for compressor management, user assistance and communications
- MOD-BUS communication system for centralized control of multiple compressors
Optional Accessories
The following options are available for installation on your ATLANTIC compressor. Please click here contact the Nuvair sales team for ordering assistance.
- Primary and secondary fill valves and hoses (the ATLANTIC compressor can operate with a maximum of two fill hoses)
- Final pressure switch with auto-stop
- Automatic condensate drain
- Double pressure with safety valve (2 hose connections: n°1 225bar/3200 psi and n°1 330bar/4700psi)
- Double pressure with pressure reducer (2 hose connections: n°1 225bar/3200 psi and n°1 330bar/4700psi)
- Trolley (wheels + handle)
- Filling hose holder
- Eco-friendly condensate collection tank
- Hour meter
