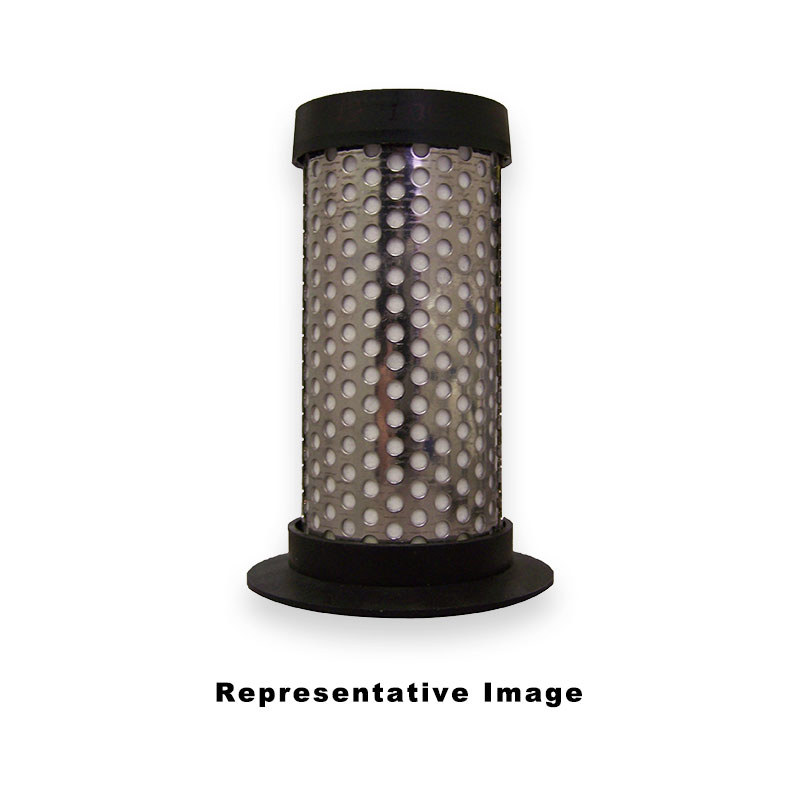

E1-16 Replacement Filter Element

$78.00

Grade 1 Filter: Oil Vapor Removal. Removes oil and hydrocarbon vapors normally adsorbed by activated carbon. Removes solid particulate to 0.01 microns with a 0.003 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF500 and is based on 100°F inlet temperature). Designed for a 1000 hour life at the rated conditions. Multiple layers of fiber media and screen remove larger particles, pre-filtering the air in the first stage of filtration. In the second stage, multiple layers of bonded, blended fiber media is utilized for fine coalescence. Multiple layers of fine media prevent particle migration.

SKU
E1-16-W
  • Buy 6 for $66.30 each and save 15%
  • Buy 10 for $62.40 each and save 20%

Quality aftermarket replacement filter manufactured by Walker Filtration. Walker Filtration is a world-class manufacturer of air oil separator elements (oil mist filters) for use in oil lubricated vacuum pumps and compressors. Manufacturing in excess of 1 million oil separator elements (OSEs) each year for use across a wide range of industries and applications, Walker Filtration’s oil mist separator and coalescing technology uses specialized materials that enable the most stringent of performance specifications to be achieved for both general and special applications including those requiring ATEX approval and certification.

Features

Withstands temperatures to 150°F (66°C)
Push-on elements provide simple replacement
Piston type seals keeps unfiltered air from bypassing element
Stainless steel, corrosion resistant inner and outer core
> Low resistance to flow
> Seam welded durability
Matrix blended fiber media
> Large, effective surface area ensures high efficiencies and minimizes pressure drop
Coated, closed cell foam sleeve
> Resists chemical attack from oils and acids
> Ensures high efficiencies by preventing re-entrainment of coalesced liquids
Chemically resistant end caps
Silicone free

Specifications

Model Size 16
Filter Element Grade 1: Oil Vapor Removal
Model E1-16-W
Stainless Steel Element NO
Flow Rating 35 SCFM
Design Temp 150°F
Weight 0.3 lbs
Walker Filtration Genuine Parts

Nuvair is an Authorized Walker Filtration Distributor
Nuvair sells only genuine parts and equipment manufactured by Walker Filtration. ISO 9001 accredited, Walker Filtration designs, develops, and manufactures high quality compressed air filtration, vacuum air/oil separation, and drying solutions for a wide range of industrial and medical applications on a global scale.

Some Walker Filtration parts are not available for purchase online. To ensure this genuine Walker Filtration part fits your compressor model/version, please contact the Nuvair sales team for ordering assistance.
