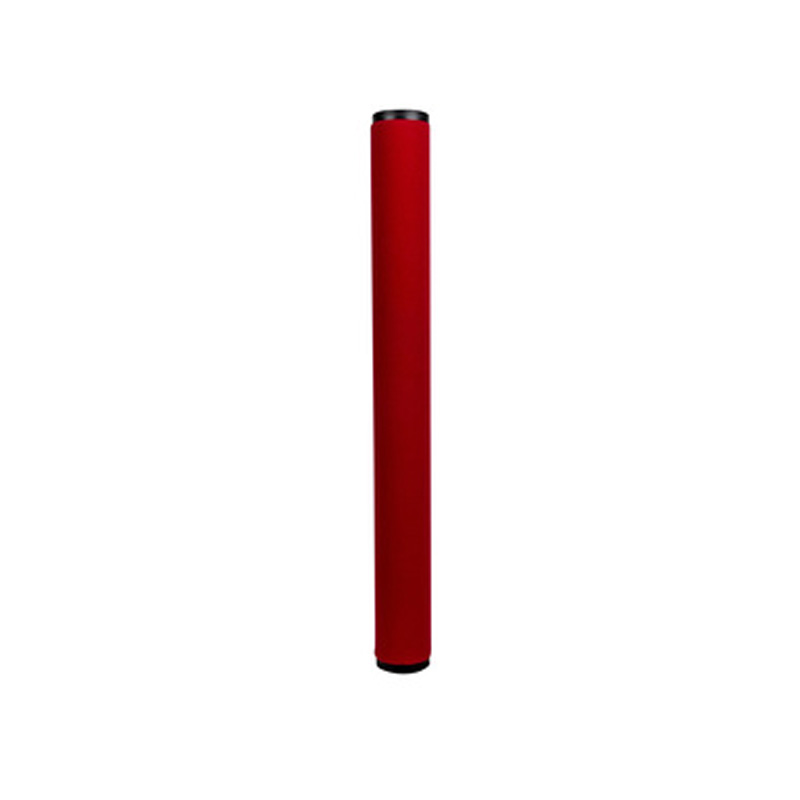

Hankison E5-54 Filter Element
Grade 5 Filter: High Efficiency Oil Removal. Designed for coalescing fine water and oil aerosols, this filter removes solid particulate to 0.01 microns with a 0.008 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF400 and is based on 100°F inlet temperature). The first stage of filtration uses multiple layers of fiber media and screen to remove larger particles, pre-filtering the air, while the second stage utilizes multiple layers of bonded, blended fiber media for fine coalescence.
- Buy 6 for $471.12 each and save 15%
- Buy 10 for $443.41 each and save 20%
Features
| Withstands temperatures to 150°F (66°C) |
| Push-on elements provide simple replacement |
| Piston type seals keeps unfiltered air from bypassing element |
| Stainless steel, corrosion resistant inner and outer core > Low resistance to flow > Seam welded durability |
| Matrix blended fiber media > Large, effective surface area ensures high efficiencies and minimizes pressure drop |
| Coated, closed cell foam sleeve > Resists chemical attack from oils and acids > Ensures high efficiencies by preventing re-entrainment of coalesced liquids |
| Chemically resistant end caps |
| Silicone free |
Specifications
| Model Size | 32 |
|---|---|
| Filter Element Grade | 5: High Efficiency Oil Removal |
| Model | E5-54 |
| Stainless Steel Element | NO |
| Flow Rating | 1000 SCFM |
| Design Temp | 150°F |
| Weight | 2.3 lb |
Hankison OEM/Distributor
Nuvair offers authentic parts and equipment manufactured by SPX Flow Hankison®. Beware of inexpensive aftermarket imitations labeled as "replacement," "OEM equivalent," "compatible," or "alternative," as they are not made by SPX Flow Hankison. Due to size, weight, specific requirements, or customer demand, some Hankison products may not be available for online purchase, and others may have extended lead times. To confirm compatibility with your existing equipment or to ensure the product meets your needs, please contact the Nuvair Sales Team for ordering assistance by email or phone.
