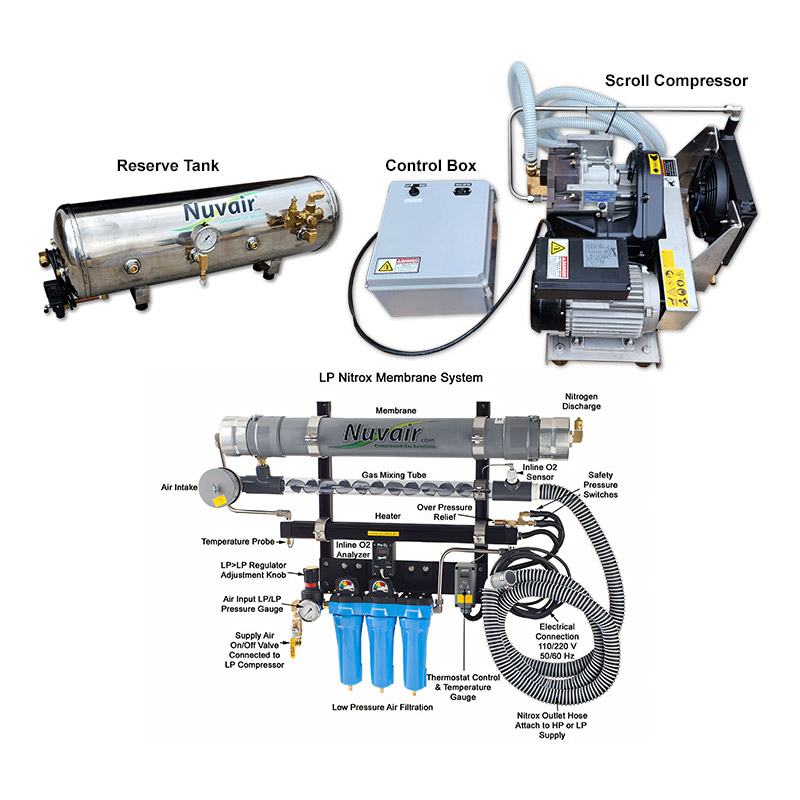

Traveler LP Portable Nitrox Generating System

This turnkey nitrox generating system is built for the diver who wants to fill enriched air tanks while away from dive shops. With this gas- or electric-powered system, you can easily produce low pressure nitrox to supply your high pressure compressor.

SKU
7051-LP

Features

  • Nuvair membrane rated for EANx40 @ 3.5 CFM (99 L/min)
  • 110-220V heater with thermostatic control
  • BP regulator gauges
  • Static mixing tube and air intake filter
  • Inline oxygen analyzer
  • Nitrox intake hose and connections

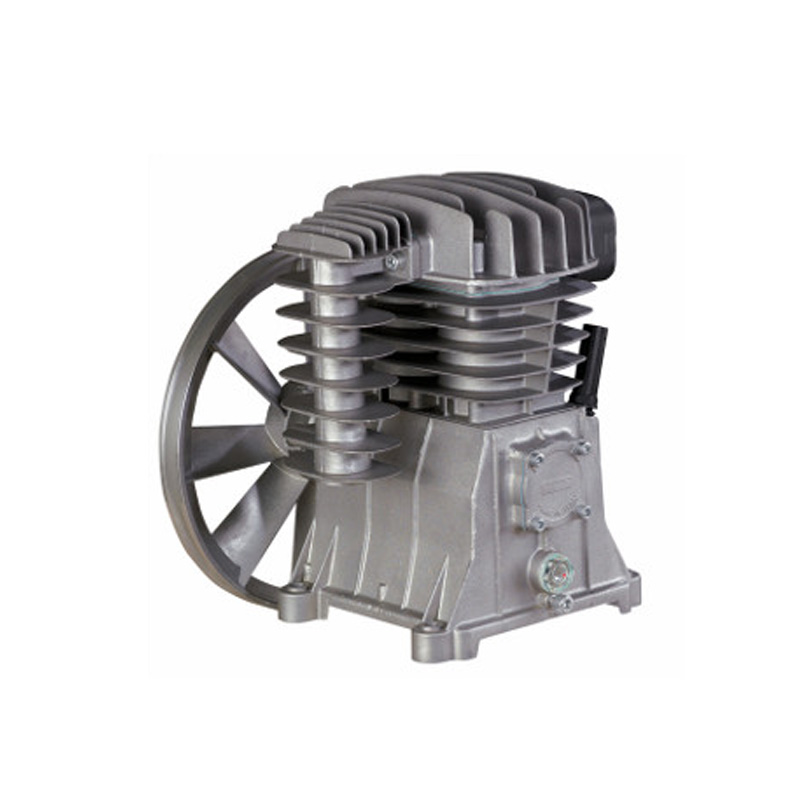

  • Bamax low pressure compressor
  • 15 gallon air storage tank
  • Air aftercooler
  • Norgren low pressure filtration

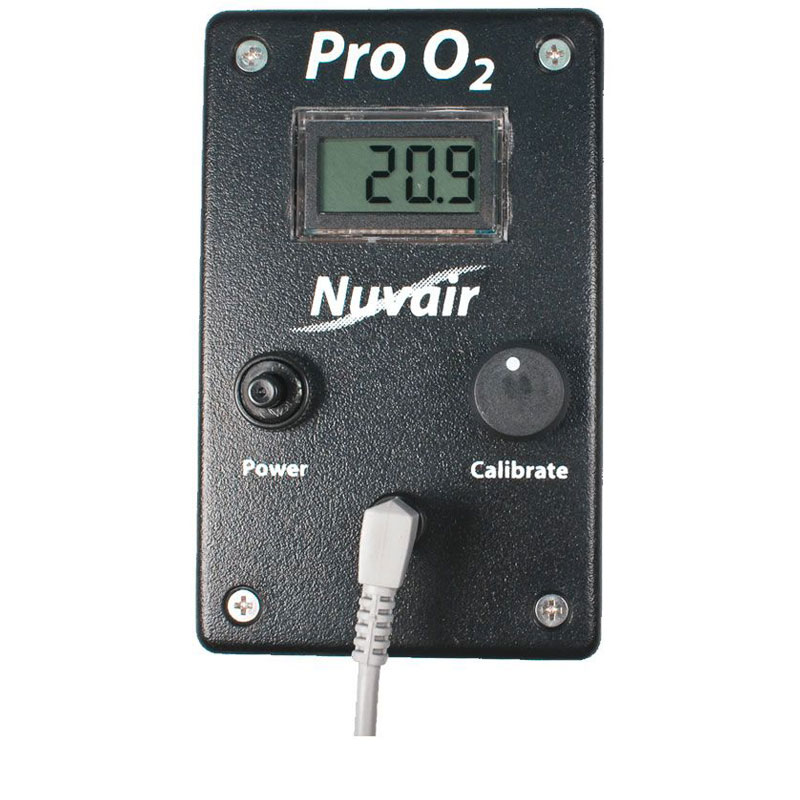

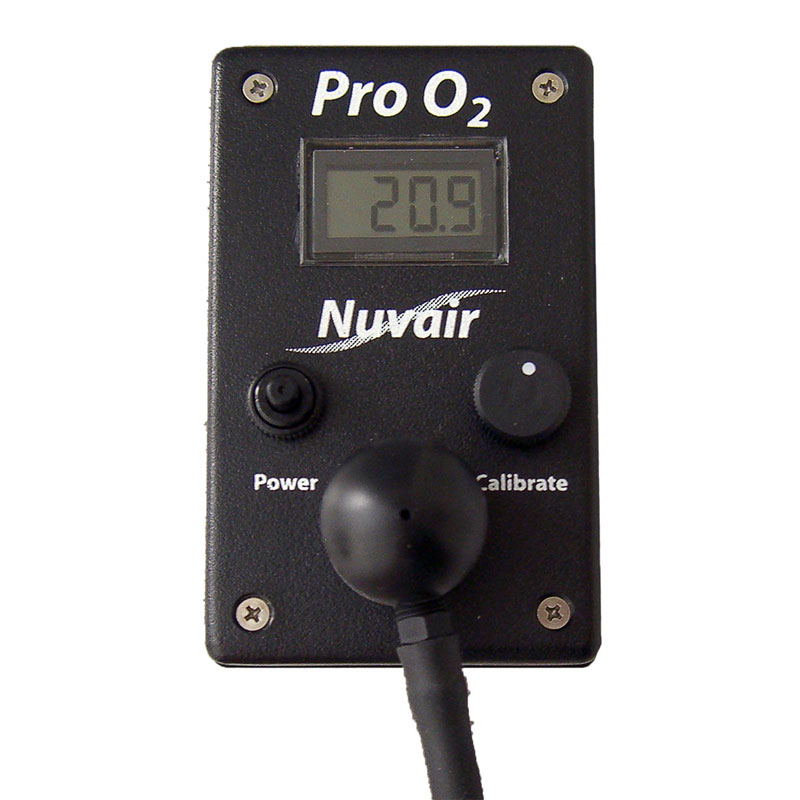

  • Pro O2 Analyzer
  • HP-LP regulator and reducer for O2 analyzer
  • Motor control / starter
  • Hour meter

Includes

  • 1 gallon compressor lubricant
  • Owners Manual
  • 25 nitrox tank wraps

Specifications

115V / E1 / 60 Hz 66A
SKU 7051.0-LP
208-230V / E1 / 60 Hz* 33A
SKU 8051.1-LP
208-230V / E3 / 60 Hz 23A
SKU 8051.2-LP
208-230V / E1 / 50Hz
SKU 8051.4-LP
Membrane Operating Pressure 80-165 psi (5.5-11 bar)
Membrane Supply Air Volume 4-16 CFM (113-453 L/min)
Membrane Optimum Temperature 110° ±5°F (43° ±3°C)
Power - Electric 5 hp (3.7 kW)
Power - Gas 5.5 hp (4 kW)
Dimensions 51 x 21 x 48 in (130 x 53 x 122 cm)
Weight 360-390 lb (163-177 kg)

*Inquire about 50 Hz products.

A high pressure compressor, such as the MCH6, is required.
