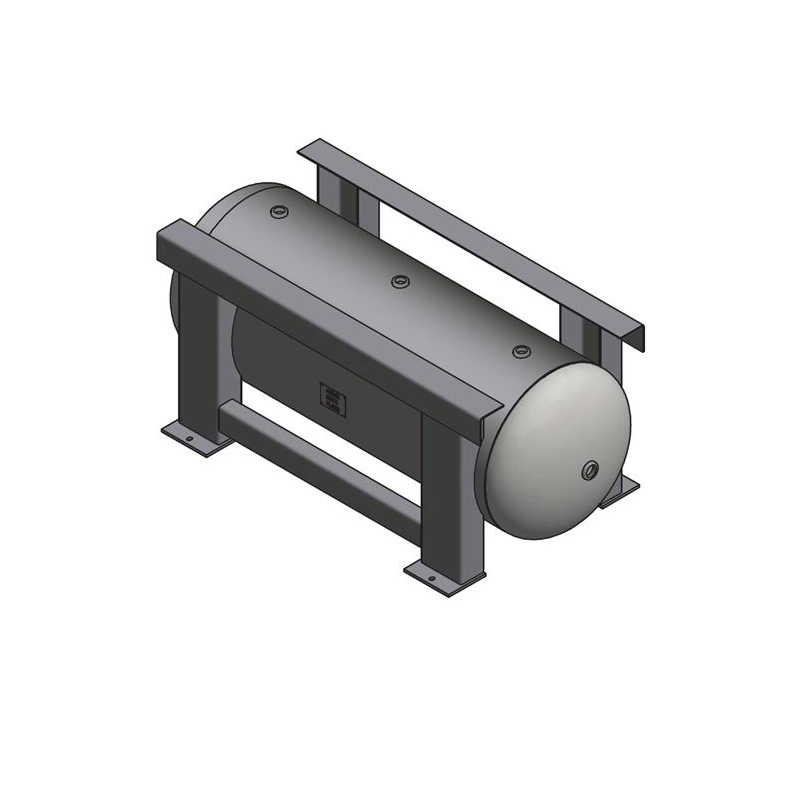

30 Gallon, 200 psi Grasshopper Volume Tank

This ~30-gallon grasshopper-style volume tank (air receiver) is ASME rated. Measures 16 in O.D. x 38 in L. Special interior and exterior coatings can be quoted to meet your specifications. Maximum working pressure: 200 psi.



This low-pressure air receiver is built in accordance with the ASME Section VIII Division I code latest addition. Quotes for special interior and exterior coating options available.

SKU A10123
Volume ~30 gal
Cubic Feet ~4.8
Material Carbon Steel
Exterior Finish Standard Shop Primer
Interior Finish As Welded, Unifinished
MAWP 200 psi @ 450°F
MDMT -20°F @ 200 psi
O.D. 16 in
Length 38 in
Shipping Weight 140 lb
Additional Equipment  Tank only
Schematic Nozzles
N1 1/4 NPT
N2 1/2 NPT
N3 1-1/2 NPT
