2-Tank Air/Nitrogen Storage Rack
The steel Nuvair 2-tank air/nitrogen rack is equipped with four-point lift eyes and fork slots for use by hoist, crane or forklift. For stability purposes, the Nuvair 4-tank rack is used for this application and the two tanks are mounted diagonally in the rack.

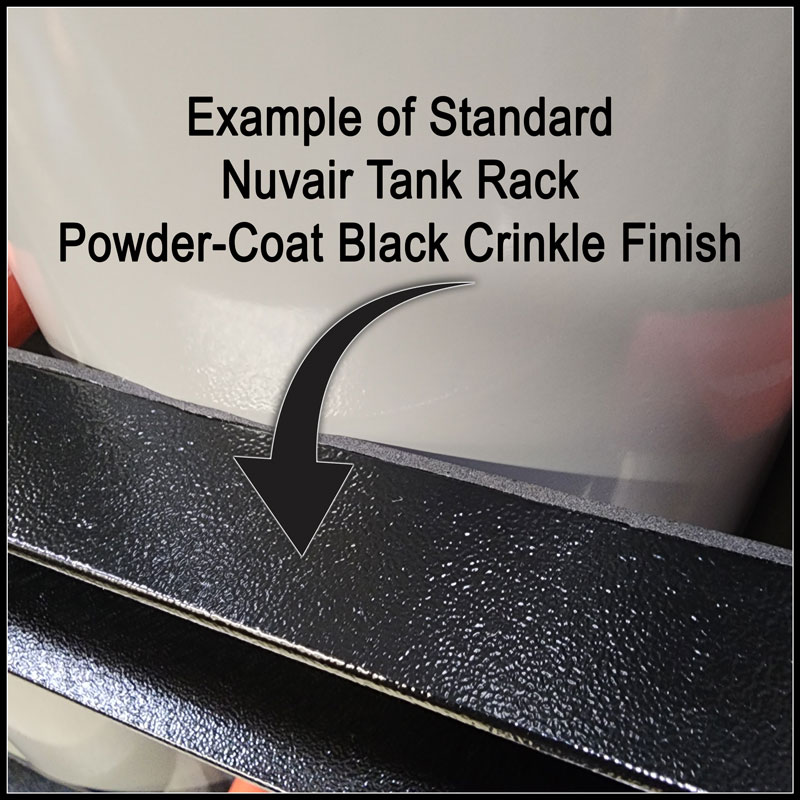

Racks are powder-coated with a black crinkle finish; other colors available upon request. Other racks can accommodate 1, 2, 3, 4, 6, 8, 9, 12 or 16 tanks. Our custom racks can meet most requirements. Certified frames are also available. Unless otherwise stated, air/nitrogen storage tanks are sold separately. When tanks are ordered with a frame, the tanks are interconnected with 1/4" stainless steel tubing. An overpressure relief valve, pressure gauge, one inlet valve, and one outlet valve are also included as standard rack plumbing. Pressure reducing regulators, high-flow manifolds, and split-bank systems are available as optional configurations.
Air Rack Specifications
| SKU | Tank Capacity |
Configuration | Dimensions / Included Equipment | Total Air Storage Capacity |
Approximate Total Weight |
|---|---|---|---|---|---|
| FR-NUVTR-2 | 2 | Frame Only | Dimensions: 71" L x 21" W x 22.5" H | N/A | 257 lb (117 kg) |
| NUVTR-2-4500 | 2 | Frame & Air Tanks | Includes (2) 4500 psi storage tanks, standard rack plumbing |
987 cu ft (28 m³) |
535 lb (243 kg) |
| NUVTR-2-6000 | 2 | Frame & Air Tanks | Includes (2) 6000 psi storage tanks, standard rack plumbing |
1173 cu ft (33 m³) |
622 lb (282 kg) |
Nitrogen Rack & Tank Specifications
The 2-tank nitrogen storage rack with gray nitrogen storage tanks includes 1/4" stainless steel tubing, inlet valve, outlet valve, overpressure safety relief valve, and pressure gauge.
| SKU | Tank Capacity |
Configuration | Dimensions / Included Equipment | Total Nitrogen Storage Capacity |
Approximate Total Weight |
|---|---|---|---|---|---|
| NUVTR-2-4500-N | 2 | Frame & Nitrogen Tanks | Includes (2) 4500 psi storage tanks, standard rack plumbing |
847 cu ft (24 m³) |
535 lb (243 kg) |
Options
- Regulator and Mount
- 415A-400: 0-400 psi Aluminum Pressure Reducing Regulator
- 415A-1500: 0-1500 psi Aluminum Pressure Reducing Regulator
- 415A-5000: 0-5000 psi Aluminum Pressure Reducing Regulator
- 415A-6000: 0-6000 psi Aluminum Pressure Reducing Regulator
- 873-400: 0-400 psi Aluminum High Flow Pressure Reducing Regulator
- 873-1500: 0-1500 psi Aluminum High Flow Pressure Reducing Regulator
- 873-5000: 0-5000 psi Aluminum High Flow Pressure Reducing Regulator - High-Flow Manifold with Additional Inlet and Outlet Valves
- Multi-Bank Configuration
- Fill/Distribution Panel
- Galvanized Frame
- Certified Frame Package
- Pull test
- Weld inspection
Storage racks are custom-made to order at our California production facility. If a rush order is required, please contact the Nuair sales team for estimated lead times.
