Hankison HF1, 100 SCFM, Oil Vapor Removal, Auto Drain | HF1-24-6D

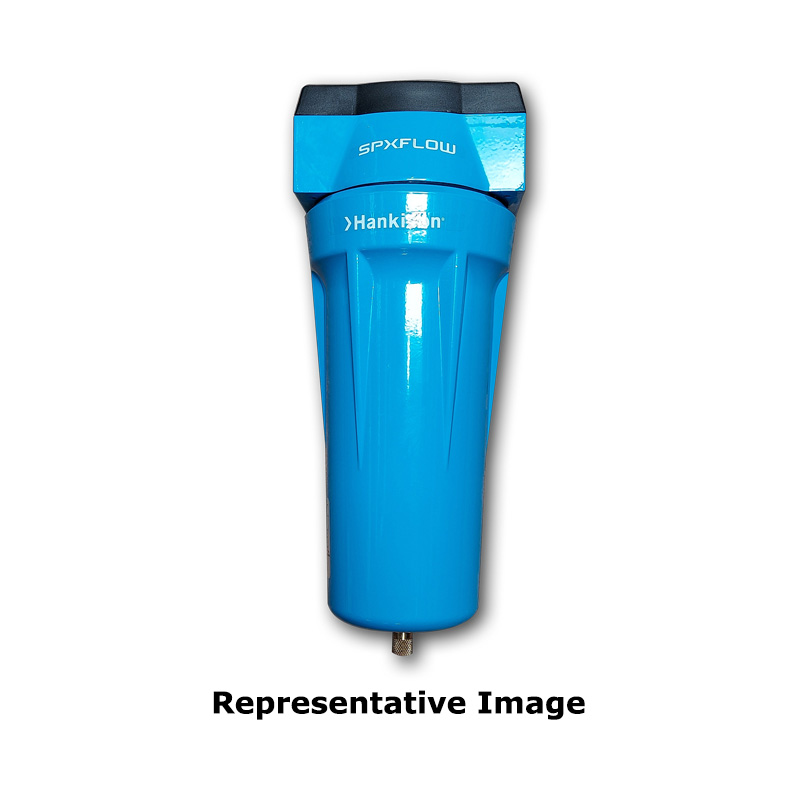

The SPX Hankison HF Series of single-stage compressed air filters are designed using quality media and manufacturing techniques. Hankison filters remove more contaminants with less pressure drop by incorporating housings with large flow areas. The HF Series is available in a wide variety of capabilities and configurations.
Specifications
| Model No. | HF1-24-6D |
|---|---|
| Item No. | 7426614 |
| Model Size (@ 100 psi) |
24: (100 SCFM) |
| Flow Rating | 100 SCFM [2.9 m³/min] |
| Connection Size (NPTF) |
6: 3/4" |
| Anodized | Yes |
| Design Pressure | 300 psi |
| Design Temp | 150°F |
| Height (in) | 15 |
| Width (in) | 5 |
| Weight (lb) | 6.3 |
| Certification | None |
| Filter Grade |
1: Oil Vapor Removal |
| LLI Option | No |
| Gauge | No |
| Drain | D: Auto Drain |
HF Series Features
| Modular Housings > Manufactured with top quality aluminum, zinc, and steel > Chromated and epoxy powder painted (interior and exterior) for added durability and corrosion resistance > 300 psi (21 bar) maximum working pressure (tested to a 5:1 safety factor) |
| Optional Liquid Level Indicator (LLI) > Allows visual monitoring of liquid level and signals the need for preventative maintenance > Manufactured from thermoset polyurethane, compatible with synthetic lubricants |
| Optional Differential Pressure Gauge > Two color gauge face indicates element change-out based on differential pressure |
| Standard Manual Drain > Condensate drained manually through clockwise adjustment |
| Optional Internal Automatic Drains > Pilot operated, pneumatically actuated to reliably discharge collected liquid > Viton seals - compatible with synthetic lubricants > Inlet screen for additional protection > Discharge fitting threaded to facilitate drain line connection |
| Easy to Install > Modular connections allow housings to be connected in a series easily, while saving space > Optional wall mounting bracket > Can be mounted for left or right entry >New space saving design reduces service clearances |
| Easy to Maintain > 1/4 turn, self locking bayonet head to bowl connection (through 1 in) > Push on elements make element replacement quick and easy > Captive O-ring > Ribbed bowls allow use of C spanner > Color coded elements for easy identification |
Filter Element Grades

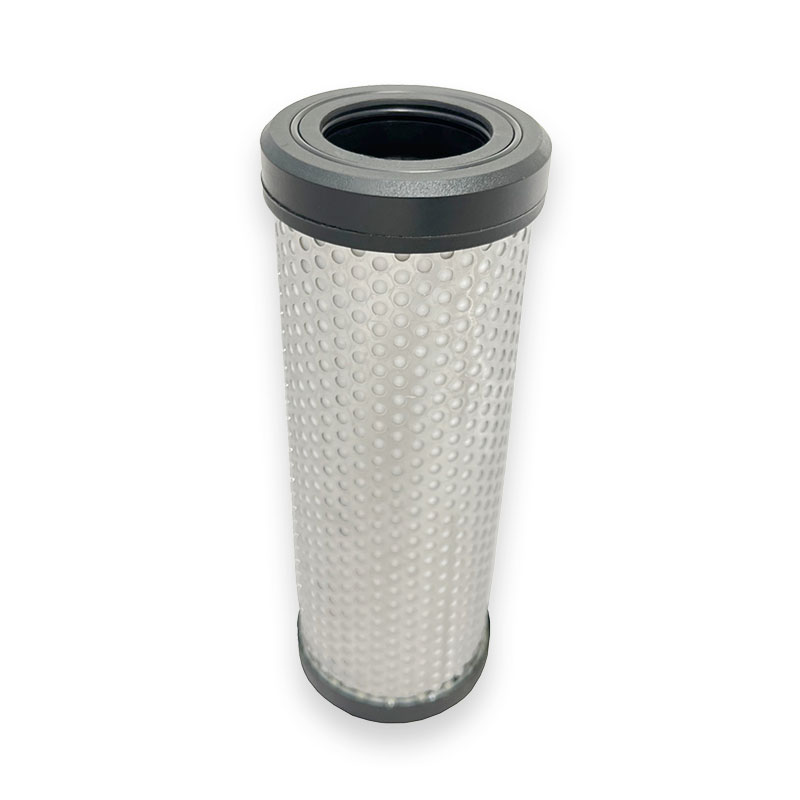

Grade 1 Filter: Oil Vapor Removal. Removes oil and hydrocarbon vapors normally adsorbed by activated carbon. Removes solid particulate to 0.01 microns with a 0.003 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF500 and is based on 100°F inlet temperature). Designed for a 1000 hour life at the rated conditions. Multiple layers of fiber media and screen remove larger particles, pre-filtering the air in the first stage of filtration. In the second stage, multiple layers of bonded, blended fiber media is utilized for fine coalescence. Multiple layers of fine media prevent particle migration.
Grade 5 Filter: High Efficiency Oil Removal. Designed for coalescing fine water and oil aerosols, this filter removes solid particulate to 0.01 microns with a 0.008 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF400 and is based on 100°F inlet temperature). The first stage of filtration uses multiple layers of fiber media and screen to remove larger particles, pre-filtering the air, while the second stage utilizes multiple layers of bonded, blended fiber media for fine coalescence.

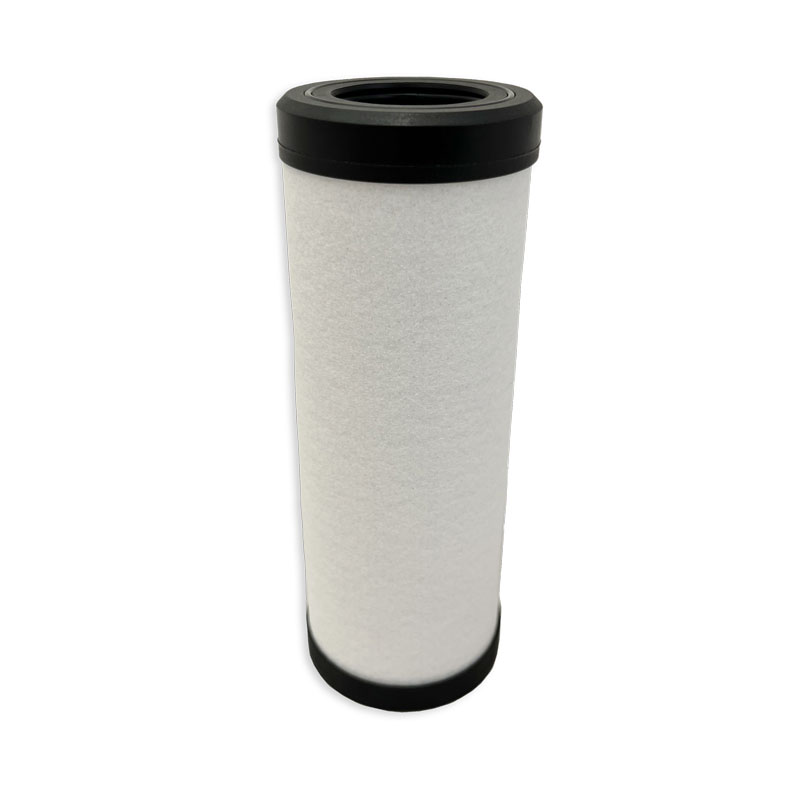

Grade 7 Filter: Air Line. Provides removal of liquid water and oil. Removes solid particulate to 1.0 micron with a 1.0 ppm w/w maximum remaining oil content (established in accordance with CAGI standard ADF400 and is based on 100°F inlet temperature). The first stage of filtration captures larger particles with alternating layers of fiber media and screen. The second stage of filtration coalesces aerosols and captures solid particles with multiple layers of epoxy bonded, blended fiber media.
Grade 11 Filter: Impact Type Moisture Separator. Moisture separator removes bulk liquid from your system. Two stainless steel orifice tubes provide 10 micron mechanical separation of liquids and solids. Applied downstream of aftercoolers.
