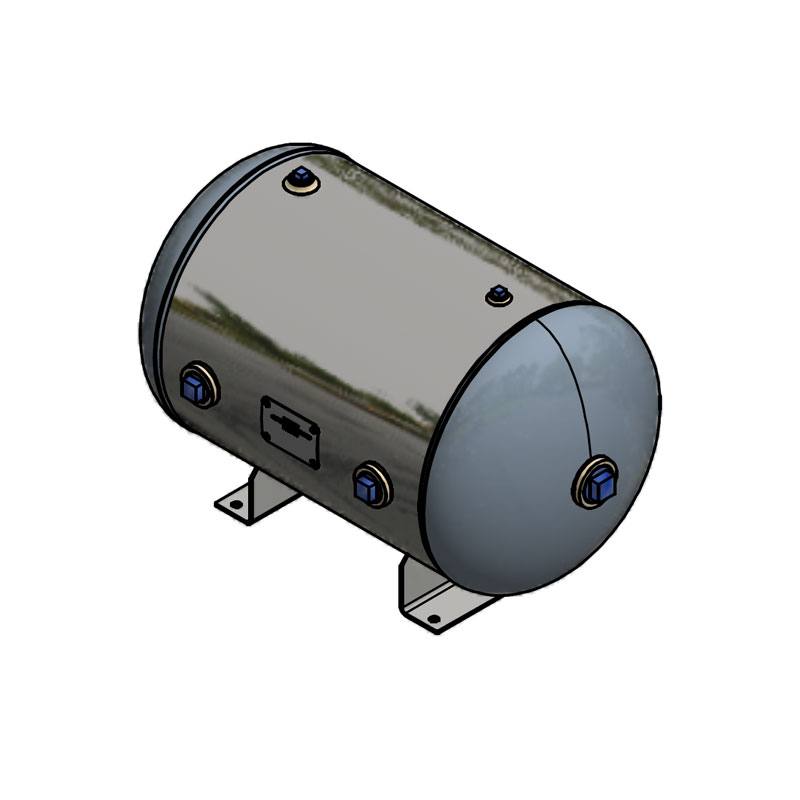

30 Gallon, 250 psi Horizontal Volume Tank

This 30-gallon horizontal volume tank is ASME rated. Measures 18" O.D. x 31" L. Special interior and exterior coatings can be quoted to meet your specifications. Maximum working pressure: 250 psi.

SKU
112615B

Specifications

This low-pressure air receiver is built in accordance with the ASME Section VIII Division I code latest addition. Quotes for special interior and exterior coating options available.

SKU 112615B
Volume 30 gal
Cubic Feet 4
Material Carbon Steel
Exterior Finish Standard Shop Primer
Interior Finish As Welded, Unifinished
Working Pressure (psi) 250
Operating Temperature –20° to 400°F
O.D. 18"
Length 31"
Weight 116 lb
Additional Equipment  Tank only; No Top Plate
