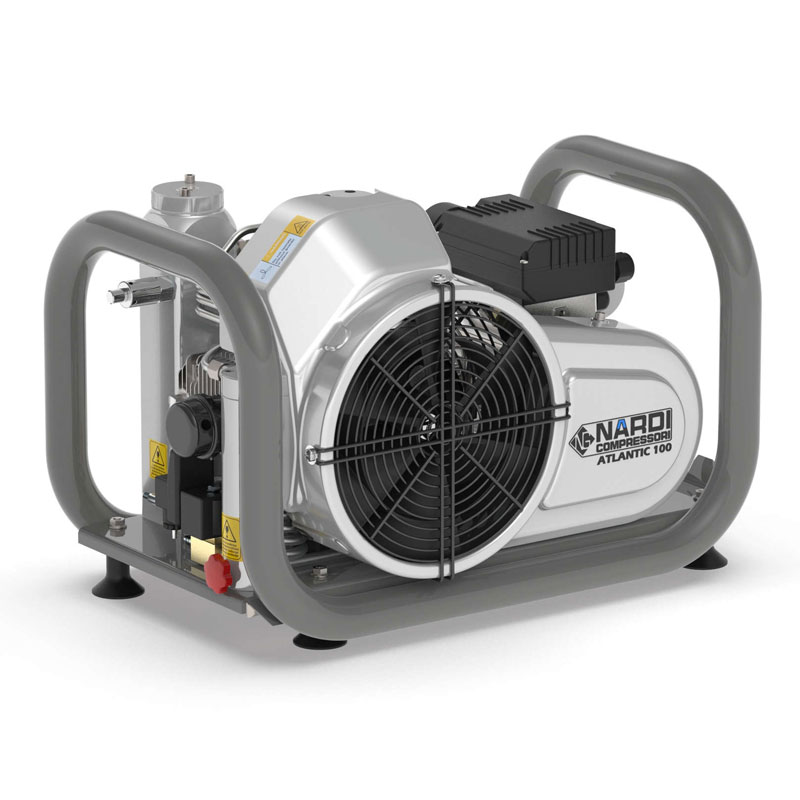

Nardi Atlantic G 100 · 6hp Robin-Subaru Gas · 3.5 CFM · 4700 + 3250 psi
The NARDI ATLANTIC G 100 is a compact, standalone high-pressure (4700 psi/330 bar + 3250 psi/225 bar via two fill connections) compressor made for compressing air on-the-go. Powered by a 6 hp (4.2 kW) Robin-Subaru gas engine, the ATLANTIC G 100 delivers CGA Grade E air quality at 3.5 CFM FAD (100 L/min) and can fill an 80 cu ft scuba tank in about 22 minutes. Includes two fill connections: DIN 300 handwheel fill valve with pressure gauge and 1m (3.3 ft) fill hose @ 4700 psi (330 bar), and DIN 200 handwheel fill valve with safety valve and 1m (3.3 ft) fill hose @ 3250 psi (225 bar). Included accessories: auto-stop pressure switch, automatic condensate drains, and hour meter. Weighs under 100 pounds (<42 kg).
The lightweight and portable NARDI ATLANTIC series of breathing air compressors are manufactured in conformity with international air quality standards. Small in size and great on performance, the ATLANTIC is the most compact model of breathing air compressors NARDI manufactures. It is easy to transport and suitable for both private and professional use. Despite its small size, the ATLANTIC is a powerful compressor, built with top quality materials to guarantee performance and reliability throughout its service life.
Optional accessories can be installed to your NARDI compressor by the Nuvair production team. All NARDI compressors are bench tested by Nuvair prior to shipping.
Specifications
| Model | Power | Charging Rate | Fill Time¹ | Stages | Pressure | Fill Connections | Motor | RPM | Noise | Weight | Size (L×W×H) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Atlantic G 100 |
Gas Engine |
3.5 CFM FAD 100 L/min (6 m³/h) |
~22 min | 4 | 4700 psi 330 bar 3250 psi 225 bar |
DIN 300 PA112-225 DIN 200 PA112-214 |
6 hp 4.2 kW |
2100 | 84 dB | 93 lb 42 kg |
29.9×16.1×16.1" 76×41×41 cm |
¹Based on 80 cu ft cylinder from 0 to 3000 psi.
Features
- Pressure valve standard on every model
- Coated aluminum frame
- Interstage condensate separator designed to decrease condensation between stages and reduce temperature
- Perfectly balanced crankshaft
- High quality materials resistant to thermal or dynamic stresses
- Air conveyor designed for a high heat exchange efficiency
- Steel valves for longer life and greater performance
- Properly sized filter cartridge for excellent air quality
- Low noise and vibration
- Advanced electronics for compressor management, user assistance and communications
- MOD-BUS communication system for centralized control of multiple compressors
- Final pressure switch with auto-stop
- Automatic condensate drain
- Hour meter
Optional Accessories
The following options are available for installation on your ATLANTIC compressor. Please click here contact the Nuvair sales team for ordering assistance.
- Double pressure with safety valve (2 hose connections: n°1 225bar/3200 psi and n°1 330bar/4700psi)
- Double pressure with pressure reducer (2 hose connections: n°1 225bar/3200 psi and n°1 330bar/4700psi)
- Trolley (wheels + handle)
- Eco-friendly condensate collection tank
DANGER
CARBON MONOXIDE WARNING · USER IS RESPONSIBLE
Air compressor intakes must be located away (upwind) from engine exhaust.
It must be at least 6 feet above ground and 12 feet away from the exhaust.
[OSHA 29 CFR 1910.430 (B)(2)]
Always use a carbon monoxide (CO) analyzer on diver air supply.
