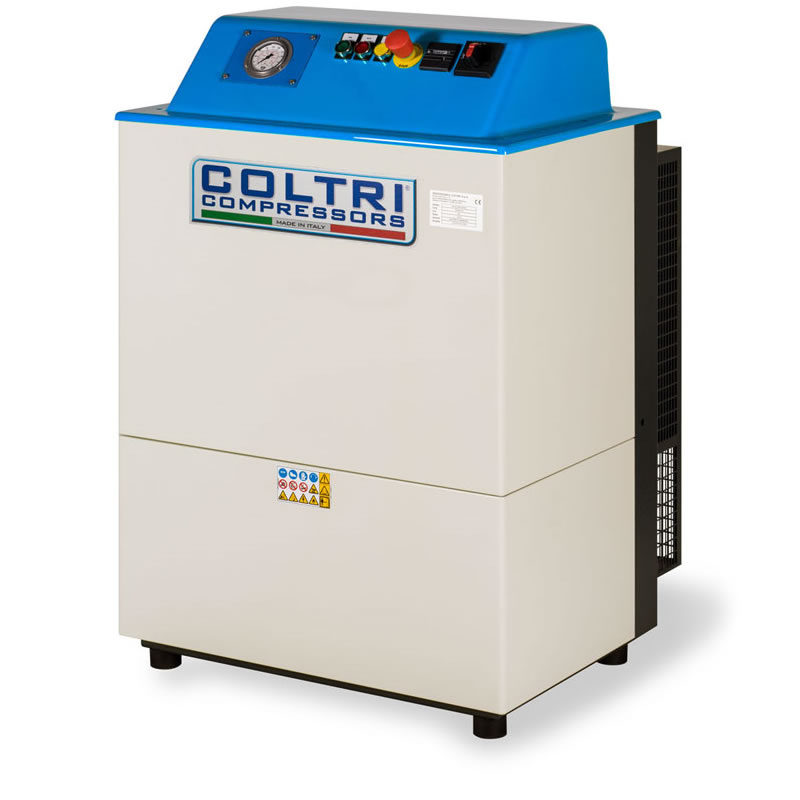

Coltri/Nuvair MCH13 / MCH16 Super Silent EVO
The soundproofed Super Silent EVO is a fully automatic fill station with a complete range of instrumentation for ease of operation. The three-stage pump is made with cylinders made of special heavy-duty cast iron. Stainless steel aftercoolers reduce the temperature of air entering the filter system, making it only 25°F hotter than the intake air. There are safety relief valves for each stage of compression. Two condensate separators and one filter chamber with a replaceable cartridge helps ensure compressed cylinder air is clean and free of contaminates.
SKU
8035 / 8035-13
Features
- Motor starter
- Automatic condensate drains
- Interstage pressure gauges
- Dial-a-pressure switch
- Automatic stop
- Hour meter
- Soundproof cabinet
- External oil sight gauge
- Low oil shutdown
- High temperature shutdown
- 5000 psi (345 bar) maximum pressure
- Grade E breathing air filtration
- Two (2) fill whips
- Stainless steel intercoolers
Options
- Visual CO and moisture indicator
- Additional filtration
Specifications
| Model | MCH13 | MCH16 |
|---|---|---|
| Fill Time* | ~11 minutes | ~9 minutes |
| Charging Rate* | 8.4 SCFM (238 L/min) | 11.3 SCFM (320 L/min) |
| CFM FAD | 7 CFM (200 L/min) | 9.4 CFM (266 L/min) |
| Motor | Single or three-phase | Three-phase |
| 208-230 V / E1 / 60 Hz | 25 A SKU 8035.1-13 |
N/A |
| 208-230 V / E3 / 60 Hz | 17 A SKU 8035.2-13 |
22 A SKU 8035.2 |
| 208-230 V / E3 / 50 Hz | 7.6 A SKU 8035.5-13 |
22 A SKU 8035.5 |
| 380-415 V / E3 / 50 Hz | 9 A SKU 8035.6-13 |
12 A SKU 8035.6 |
| 440-480 V / E3 / 60 Hz | 8 A SKU 8035.3-13 |
13 A SKU 8035.3 |
| Motor Power | 5.5 hp (4 kW) | 7.5 hp (5.5 kW) |
| Maximum Operating Pressure | 5000 psi (345 bar) | 5000 psi (345 bar) |
| RPM | 1350 | 1550 |
| Number of Stages | 3 | 3 |
| Number of Fill Hoses | 2 | 2 |
| Condensate Drain | Automatic | Automatic |
| Fill Pressure Stop | Automatic | Automatic |
| Sound Level @ 3 Meters | 66 dB | 69 dB |
| Dimensions (L x W x H) |
35 x 33.5 x 52.5 in (90 x 85 x 133 cm) |
35 x 33.5 x 52.5 in (90 x 85 x 133 cm) |
| Weight | 466 lb (177 kg) | 488 lb (187 kg) |
| Lubrication | Splash lubrication, capacity 1.8 L | |
| Air Quality | DIN 3188 - CGA Grade E - NFPA 1500 - EN12021 | |
* Fill time based on 80 cu ft cylinder from 500 to 3000 psi.
